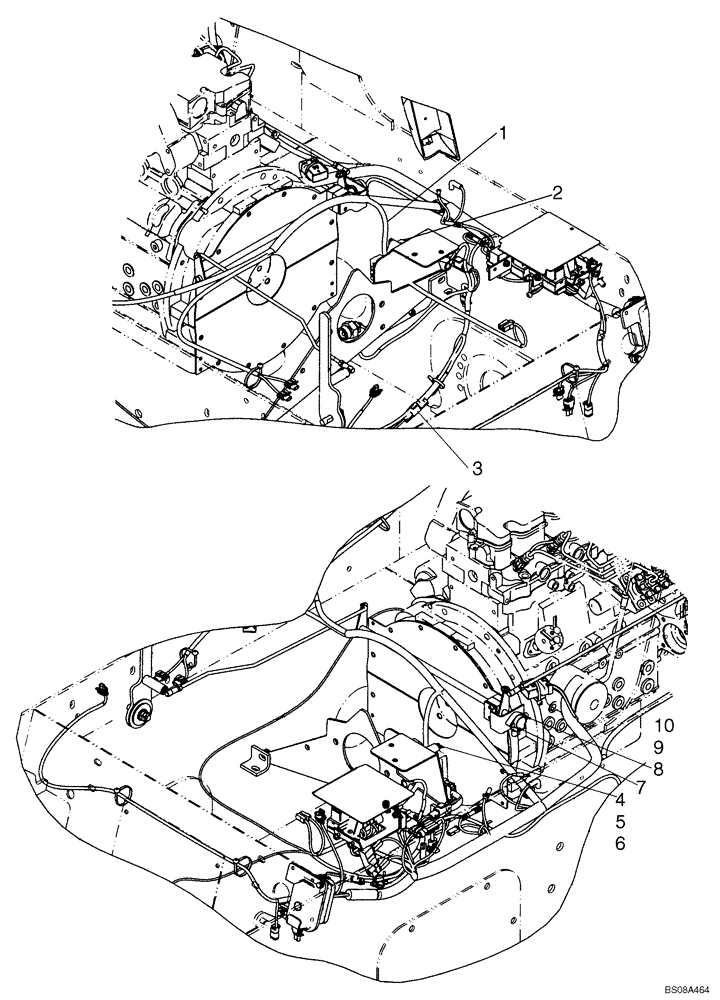

Запчасти Case IH 420 (04-07A) - HARNESS - LOAD MANAGEMENT SYSTEM (04) - ELECTRICAL SYSTEMS

1

87593398

HARNESS

Harness, Load Management System

1шт.

2

87583620

MODULE

Control Module

1шт.

3

87662902

WIRE CONNECTOR

Connector, Machine Model (420CT)

1шт.

4

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

Bolt, M6 X 60 Cl 8.8

2шт.

5

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

6

86509309

NUT,1/4"-28, G5

2шт.

7

87629051

SENSOR

Throttle Control Sensor

1шт.

8

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

2шт.

9

87016571

NUT,M5, Cl 5

2шт.

10

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.
