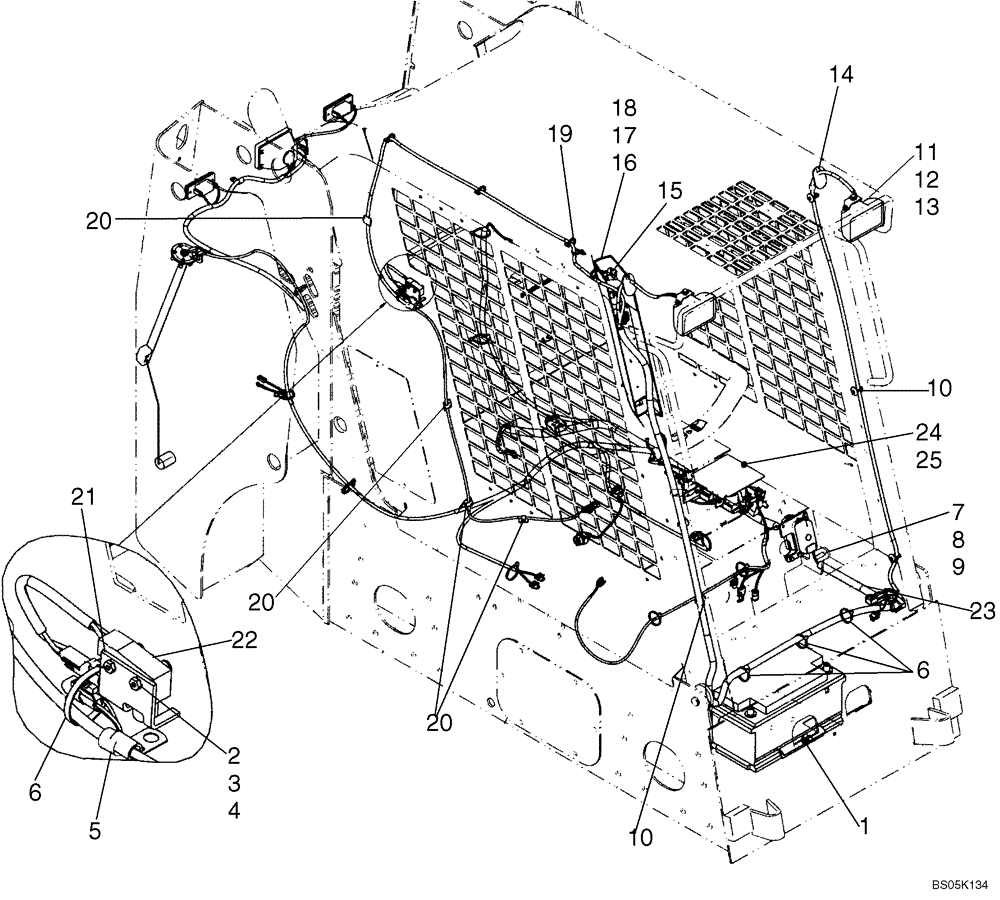

Запчасти Case IH 420 (04-07) - HARNESS - CAB (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

See Figure 04-04

1шт.

2

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

#6 x 1.375

2шт.

3

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

4

280859

NUT,Keps, #6-32

#6

2шт.

5

87016871

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, J Type

9.5 mm 3/8 Bolt

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

7

86624181

WASHER,M6

6шт.

8

86512440

NUT,M6, Cl 10

2шт.

9

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

10

378884A2

STRAP,254mm L

5шт.

11

87030137

LAMP BASE

Incl. Bulb 87026085

2шт.

87026085

BULB

1шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

87460015

GROMMET

2шт.

15

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

16

87677003

INSTRUMENT CLUSTER

Replaces 87389805, 87354268, 87029538

1шт.

87677003R

REMAN-INSTR CLUSTER

420 SKID STEER - NA BSN N7M466710 (2/05-), 420CT COMPACT TRACK LOADER - BSN N7M455401 (3/06-12/07)

1шт.

87677003C

CORE-CLUSTER, INSTR

Return number

1шт.

17

87032970

SWITCH

Ignition; If Used; Incl. Keys, 1964831C2 and Nut, 86400462

1шт.

17

87352774

SWITCH

Ignition; If Used, Used With Instrument Cluster 87354268; Incl. Keys, 1964831C2 and Nut, 86400462

1шт.

1964831C2

IGNITION KEY

1шт.

86400462

NUT

1шт.

18

280272

HEX SOC SCREW,1/4" - 20 x 3/4"

3шт.

19

347610A1

ANCHOR

5шт.

20

H439303

CLIP

4шт.

21

87035077

ANGLE

1шт.

22

392269A2

SWITCH

Seat

1шт.

23

87053112

HARNESS

Cab

1шт.

24

379518A1

SCREW,5mm OD x 21.3mm L

Snap In

1шт.

25

379516A2

PANEL

Fuse And Relay Cover

1шт.
