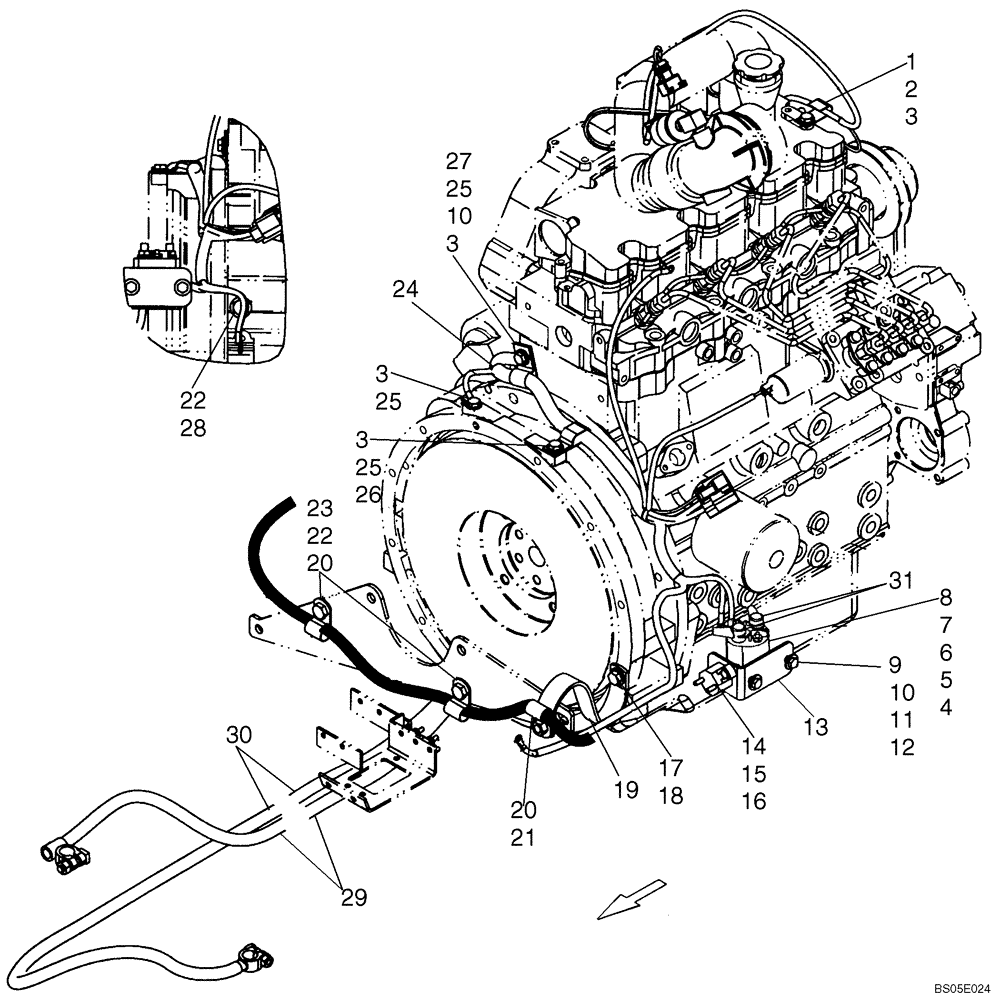

Запчасти Case IH 420 (04-05A) - ENGINE, ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

134579

WIRE CLAMP,J

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4-5шт.

4

87406968

SOLENOID SWITCH

1шт.

5

80681

LOCK WASHER,5/16"

2шт.

6

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

7

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

8

87825

NUT,#10-32

2шт.

9

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2-3шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

13

87447727

ANGLE

Circuit Breaker Mounting

1шт.

14

9843910

CIRCUIT BREAKER,50A

50A Circuit Breaker

1шт.

15

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

16

43416

KIT

2шт.

17

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

19

512306

GROUND CABLE

1шт.

20

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

15.9 mm M12 Bolt

3шт.

21

86500689

NUT,M10 x 1.5, Cl 10

1шт.

22

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

23

43435

FLANGE NUT,Hex, M10 x 1.5

2шт.

24

87435351

WIRE HARNESS

Engine; Braided Conduit

1шт.

24

87462056

HARNESS

Engine; Replaces 87435351; Split Conduit

1шт.

25

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

If used

2-3шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

3шт.

26

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

.5 x 1.06; If Used

1шт.

26

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

Clamp; 22.2 mm 3/8 in Bolt; If Used

2шт.

26

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

If Used

3шт.

27

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

.687 x .531 Bolt; If Used

1шт.

27

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

.5 x 1.06; If Used

1шт.

28

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

29

REF

INSTRUCTION

Battery Cable; Positive; See Figure 04-04

1шт.

30

REF

INSTRUCTION

Battery Cable; Negative; See Figure 04-04

1шт.

31

87461743

BOOT

Electrical Boot

2шт.
