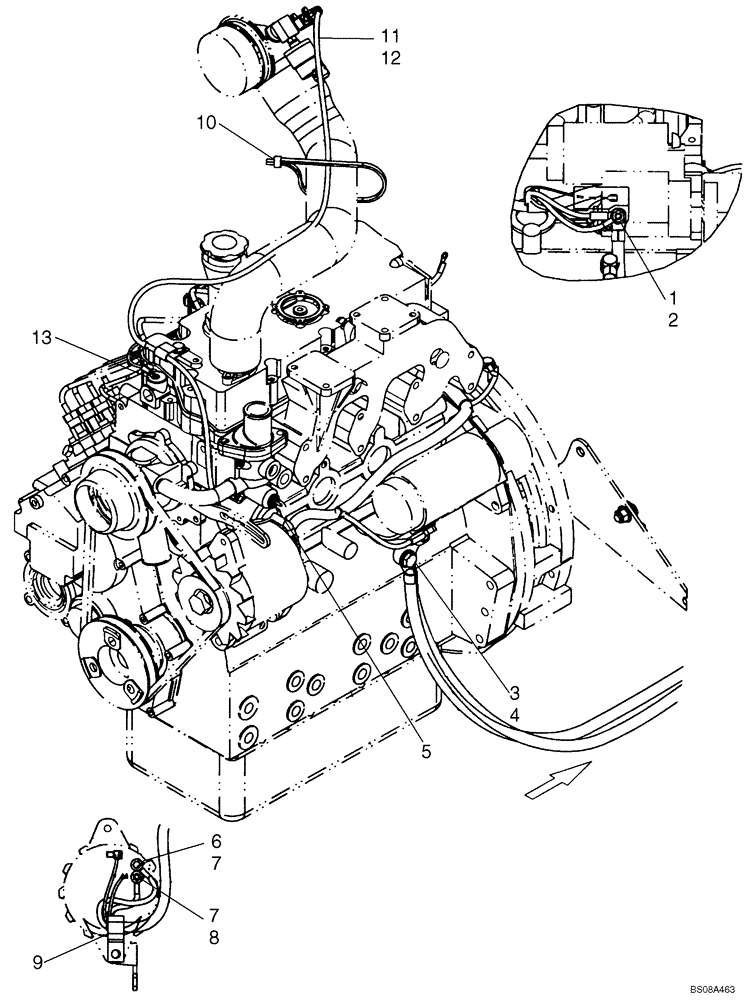

Запчасти Case IH 420 (04-05) - ENGINE, ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

9706690

NUT,M8 x 1.25, Cl 8

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

5

3917490

TEMPERATURE SENDER

1шт.

6

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

1шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

8

86508813

NUT,M5, Cl 8

1шт.

9

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

11

293797A1

RESTRICTION SWITCH

Air

1шт.

12

84015293

ELBOW,90 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

13

SBA185246060

SENDER UNIT

Oil Pressure Switch; See Fig 02-10

1шт.
