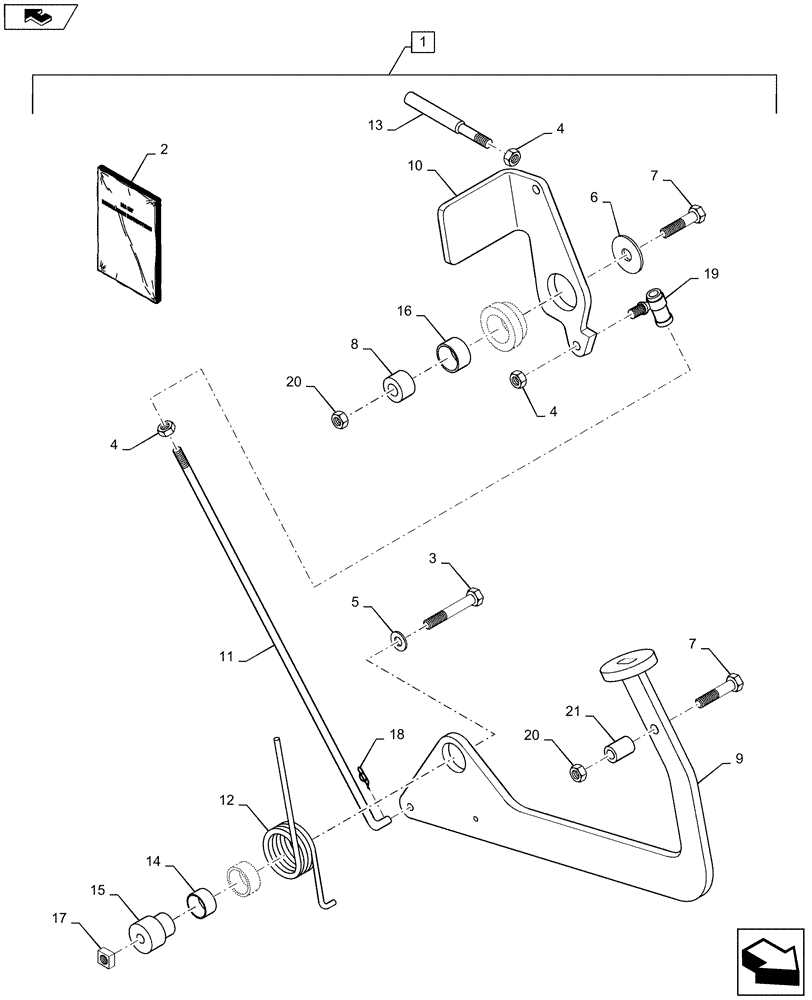

1
87416522
DIA KIT, ADD PROD
Foot Throttle, Incl 2 - 21
1шт.
2
6-78861
Installation
INSTRUCTION
1шт.
3
16044321
BOLT,M8 x 1.25 x 55mm, Cl 8.8
1шт.
4
86509309
NUT,1/4"-28, G5
3шт.
5
86639313
WASHER,9mm ID x 24mm OD x 2mm Thk
1шт.
6
86979986
WASHER,0.34" ID x 1.25" OD x 0.06" Thk
Case
1шт.
7
300381
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
2шт.
8
87416529
SLEEVE
Rocker Pivot
1шт.
9
87356197
PEDAL ASSY.
Foot Throttle All
1шт.
10
87461888
HOUSING ASSY.
Rocker, Foot Throttle
1шт.
11
87416536
ROD
Foot Throttle
1шт.
12
87416539
TORSION SPRING
1шт.
13
87416541
EXTENSION
Throttle Rod
1шт.
14
87424094
BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L
Foot Throttle
1шт.
15
87424095
SLEEVE
Throttle Pivot
1шт.
16
186905A1
BUSHING
Bearing, Throttle
1шт.
17
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
1шт.
18
D131983
COTTER PIN,1.04mm OD x 21.4mm L, Ring
Ring
1шт.
19
H169920
BALL JOINT
1шт.
20
86629542
NUT,M8 x 1.25, Cl 8.8
All Material
2шт.
21
87036415
SPACER,9.25mm ID x 13.72 OD x 19.05mm L
Steel
1шт.
