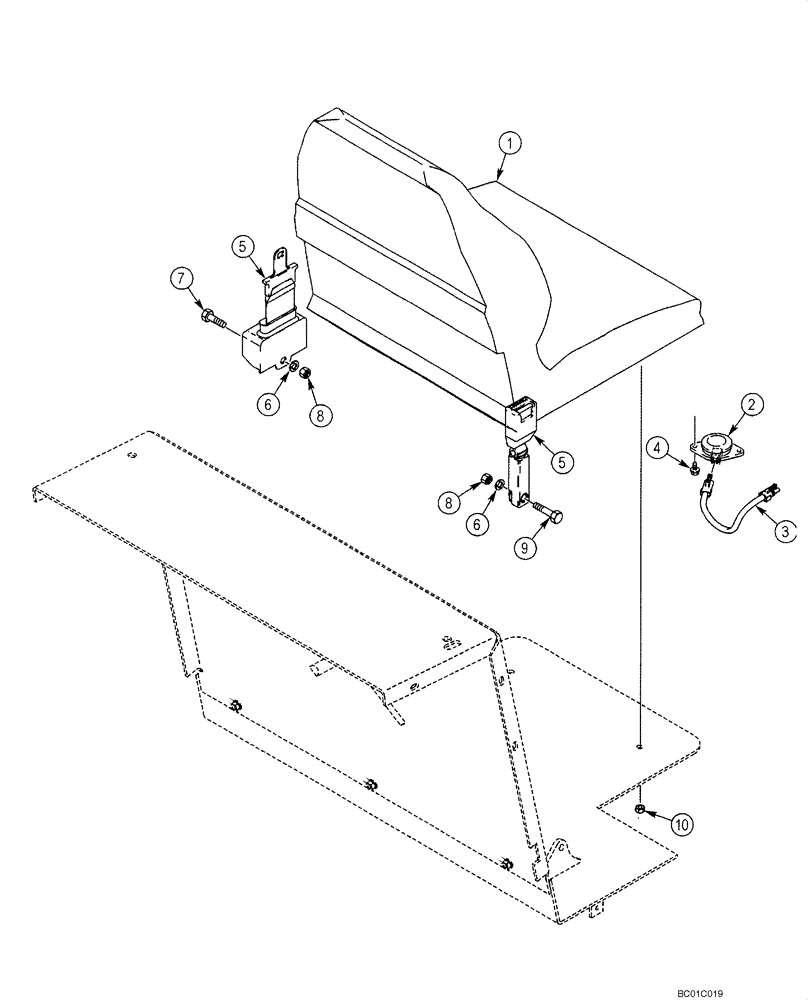

Запчасти Case IH 420 (09-29) - SEAT, MOUNTING - NON-SUSPENSION (09) - CHASSIS

1

87405117

SEAT

Incl. 2

1шт.

2

86603490

SWITCH

Operator Presence

1шт.

3

302137A2

HARNESS

Seat; Two Connector

1шт.

4

NSS

NOT SOLD SEPARAT

Bolt

4шт.

5

249116A1

SAFETY BELT ,50.80 mm W

Includes 6

1шт.

5

249117A1

SAFETY BELT ,76.20 mm W

Includes 6, North America Only

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

2шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

8

86512554

NUT,M10 x 1.5, Cl 10

2шт.

9

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

10

832-41408

NUT,M8 x 1.25, Cl 10

4шт.
