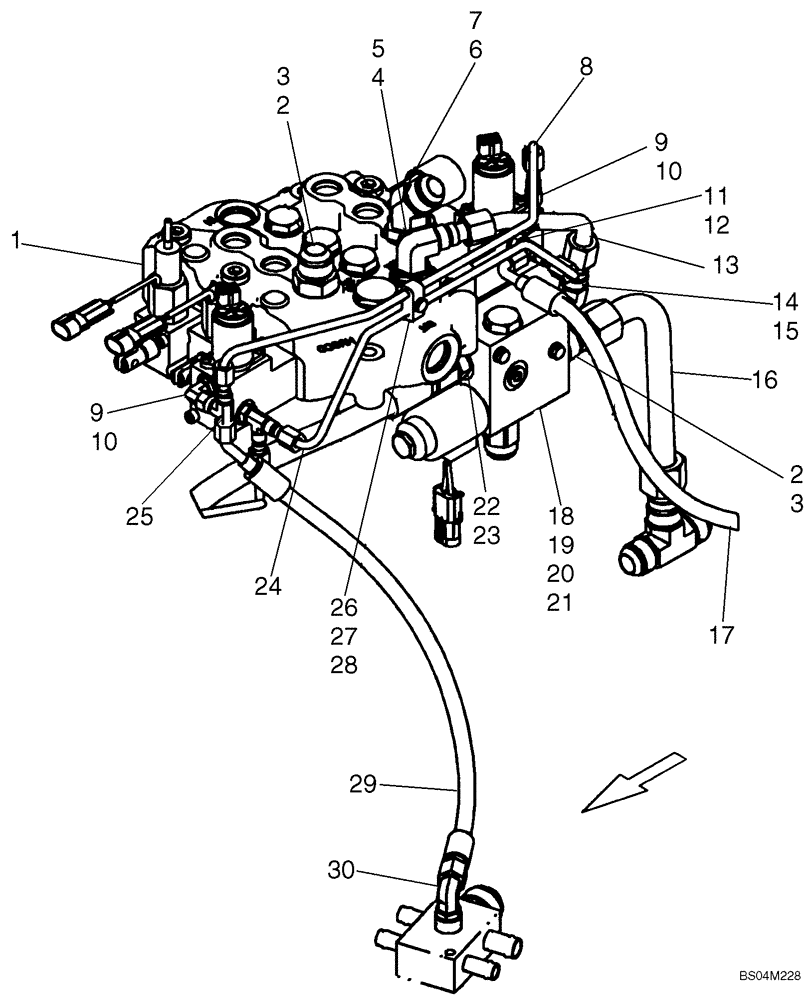

Запчасти Case IH 420 (08-19) - HIGH FLOW, CONTROL VALVE (08) - HYDRAULICS

1

87446766

CONTROL VALVE

See Figure 08-10

1шт.

1

87635385R

420 SKID STEER, NA BSN N7M466710 (2/05-), Reman for New PN 87446766

REMAN-HYD VALVE

1шт.

1

87635385C

Return Number

CORE-VALVE HYD

1шт.

1

87527174

VALVE

See Figure 08-10; If Used

1шт.

1

87635385R

420 SKID STEER, NA BSN N7M466710 (2/05-), Reman for New PN 87527174

REMAN-HYD VALVE

1шт.

1

87635385C

Return Number

CORE-VALVE HYD

1шт.

1

87583286

VALVE

EH Auxiliary; See Figure 08-10A; If Used

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 3

2шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 5

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 7

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

87021276

HYD TUBE

1шт.

9

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 10

1шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 12

2шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

13

87423209

HYD TUBE,12.7 mm OD x 146.2, 113.4 mm L

1шт.

14

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 15

2шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

87445144

HYD TUBE,19.05 mm OD x 200.7, 93.9 mm L

Valve Out To Filter

1шт.

17

87022702

HOSE

675 mm (26.57 in)

1шт.

18

87012669

VALVE

Combination; See Figure 08-20

1шт.

19

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

2шт.

22

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 23

2шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

87438840

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

25

218-841

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br

1шт.

26

608089

CLAMP

1шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

28

832-41406

NUT,M6 x 1, Cl 8

1шт.

29

87441858

HOSE

Case Drain

1шт.

30

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
