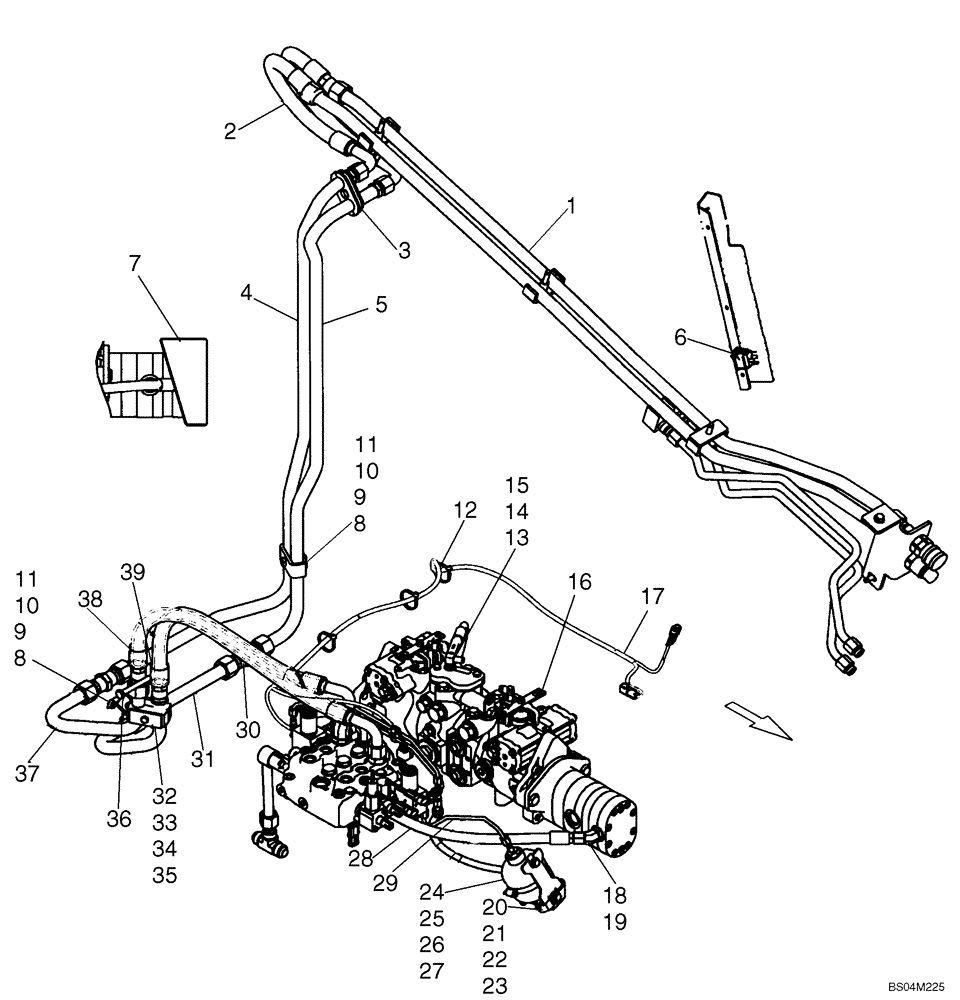

Запчасти Case IH 420 (08-17) - HIGH FLOW, SUPPLY AND RETURN (420) (08) - HYDRAULICS

1

REF

INSTRUCTION

See Figure 08-18

1шт.

2

87020048

HOSE,19.05mm ID x 675mm L

2шт.

3

87017999

SUPPORT

2шт.

4

87448073

HYD TUBE,25.4 mm OD

1шт.

5

87436536

HYD TUBE,25.40 mm OD

1шт.

6

87414769

SWITCH

Rocker, High Flow

1шт.

7

87460011

COVER

Heelplate

1шт.

8

87020743

BRACKET

2шт.

9

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

10

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

11

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

2шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

13

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 14

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

87441786

VALVE

In Line Check

1шт.

16

87055821

PUMP

Tandem Pump; See Figure 06-07

1шт.

17

87447970

HARNESS

Electro-Hydraulic Auxiliary

1шт.

18

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

Incl. 19; If Used

1шт.

18

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 19; If Used

1шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

87440253

ANGLE

Mounting Bracket

1шт.

21

122158A1

NUT,M8, U

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

24

86624732

ACCUMULATOR

1шт.

25

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Type F #64

1шт.

26

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

Incl. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

87458726

HOSE,12.7mm ID x 575mm L

1шт.

29

87447764

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

30

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

2шт.

31

87436533

HYD TUBE,25.40 mm OD

1шт.

32

1546028C1

CLAMP,25.4mm ID x 82mm L

25.4 x 25.4

1шт.

33

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

34

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

35

9628098

NUT,M8 x 1.25, Cl 10

1шт.

36

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

37

87448072

HYD TUBE,25.4 mm OD

1шт.

38

87020053

HOSE,19.05mm ID x 900mm L, SAE 100R17

1шт.

39

87020054

HOSE,19.05mm ID x 760mm L

1шт.
