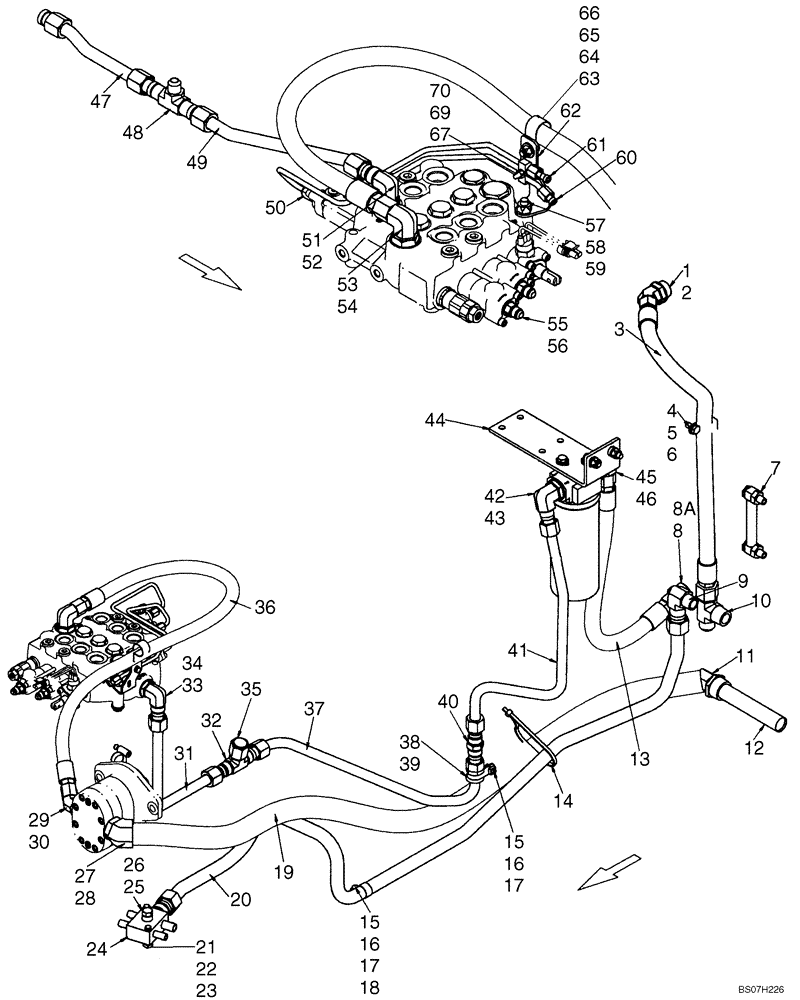

Запчасти Case IH 410 (06-13) - HYDROSTATICS - REAR PLUMBING (PILOT CONTROL) (06) - POWER TRAIN

1

87657980

ELBOW

Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87653980

HOSE,19.05mm ID x 810mm L, SAE 100R4

Upper Cooler Hose, 810mm (31 7/8 in.)

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

6

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

87374752

GAUGE

Liquid Level Gauge

1шт.

8

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 8A

1шт.

8a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

10

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

11

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

12

H151399

FILTER STRAINER

1шт.

13

87720240

HOSE,19.05mm ID x 760mm L

Hose, Filter To Cooler, 760mm (29 15/16 in.)

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

5шт.

18

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

87653849

HOSE,31.75mm ID x 1475mm L, SAE 100R4

Suction Hose, 1475mm (58 1/16 in.)

1шт.

20

87458880

HYD TUBE,25.4 mm OD

Case Drain

1шт.

21

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

22

87404992

SQUARE NUT,M6 x 1.0, Cl 8

3шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

87437351

MANIFOLD

Return Oil Manifold

1шт.

25

76349

PLUG,9/16" - 18 ORB

Incl. 26

1-3шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

27

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 28; If Used

1шт.

27

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

29

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 30

1шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

87445137

HYD TUBE,19.05 mm OD x 306.7, 187.6 mm L

Valve To Filter

1шт.

32

15694

TEE,1 1/16"-12 37 Degree

1шт.

33

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 34

1-3шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

35

219606

CAP,1-1/16" - 12 JIC

1шт.

36

87021838

HOSE ASSY.

Supply Hose, 1065mm (41 15/16 in.)

1шт.

37

87445138

HYD TUBE,19.05 mm OD

Valve To Filter

1шт.

38

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

39

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

40

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

41

87445139

HYD TUBE,19.05 mm OD

Valve To Filter; If Used , For Cooler Bypass Option See Fig 02-23

1шт.

42

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 43; If Used

1шт.

43

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

If Used

1шт.

44

REF

INSTRUCTION

Filter And Mounting; See Fig. 06-09

1шт.

45

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 46

1шт.

46

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

47

87564000

HYD TUBE,15.875 mm OD x 219.7 mm L

Dump Valve Drain; If Used

1шт.

48

87644290

HYD CONNECTOR

If Used

4шт.

49

87653878

HYD TUBE,15.88 mm OD x 298.6, 35.4 mm L

Tube, Lift; If Used

1шт.

50

87575684

HYD CONNECTOR

2шт.

51

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 52; If Used

1шт.

52

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

53

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 54

1шт.

54

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

55

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 56

2шт.

56

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

57

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

58

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

11шт.

59

86512554

NUT,M10 x 1.5, Cl 10

5шт.

60

87563968

HYD TUBE,6.35 mm OD

Tube, Pilot

1шт.

61

87563969

HYD TUBE,6.35 mm OD

Tube, Pilot

1шт.

62

87678506

BRACKET

Hose Support; Replaces 87564009

1шт.

63

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

64

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1-2шт.

65

9628098

NUT,M8 x 1.25, Cl 10

1шт.

66

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

67

80120101

BOLT

1шт.

69

87030561

NUT,M6 x 1, Cl 8

1шт.

70

608089

CLAMP

1шт.
