Запчасти Case IH 410 (06-09) - FILTER ASSY - MOUNTING (06) - POWER TRAIN

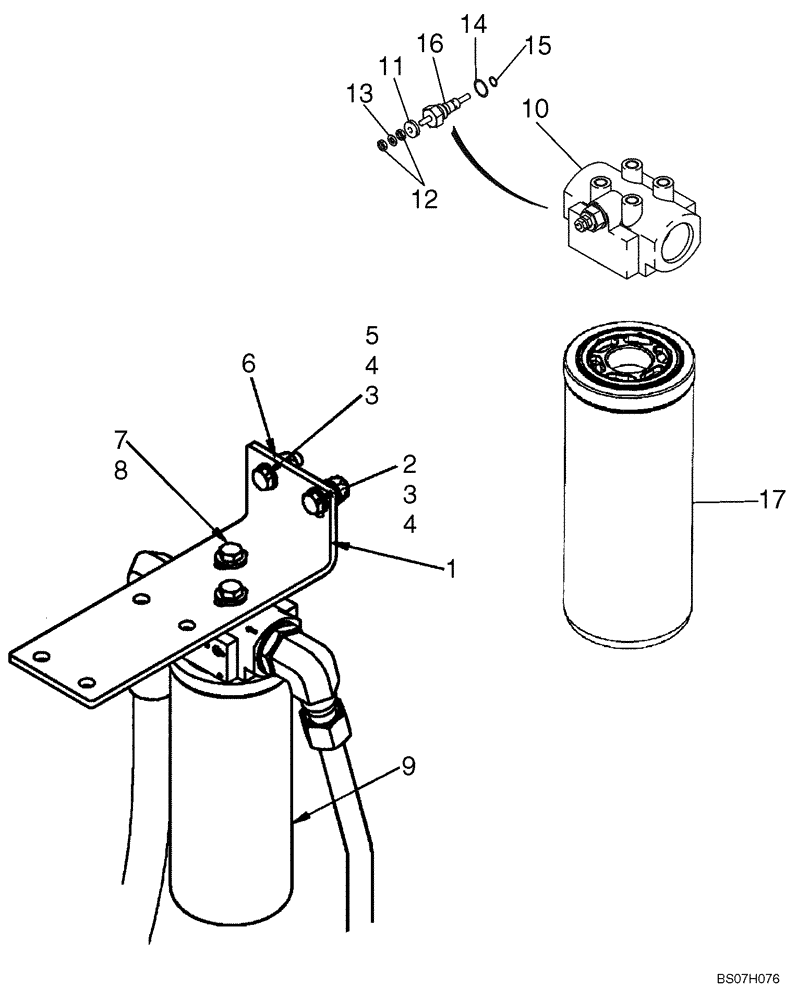

Схема запчастей Case IH 410 - (06-09) - FILTER ASSY - MOUNTING (06) - POWER TRAIN
8
11
14
4
16
17
10
5
1
13
6
7
12
3
9
2
4
15
3

Артикул

Название

Примечание

Количество

1

87727729

BRACKET

Hydrostatic Filter Bracket; Replaces 87610183

1шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

3

86512554

NUT,M10 x 1.5, Cl 10

2шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

Hex, M10 x 25, 8.8, Full Thd

2шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1-2шт.

6

349192A1

SPACER

If Used

1шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

9

87430661

FILTER

Hydrostatic Filter; Return; Incl. 10 - 17

1шт.

10

87439984

FILTER HEAD

Hydrostatic Filter; Incl. N13268

1шт.

N13268

PRESSURE SWITCH

Hydrostatic Filter; Incl. 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

Washer; Red, White

1шт.

12

129-667

NUT,#10-32, LH

2шт.

13

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Body

1шт.

17

87010593

ELEMENT

Hydrostatic Filter

1шт.

Выбрано товаров: 18
