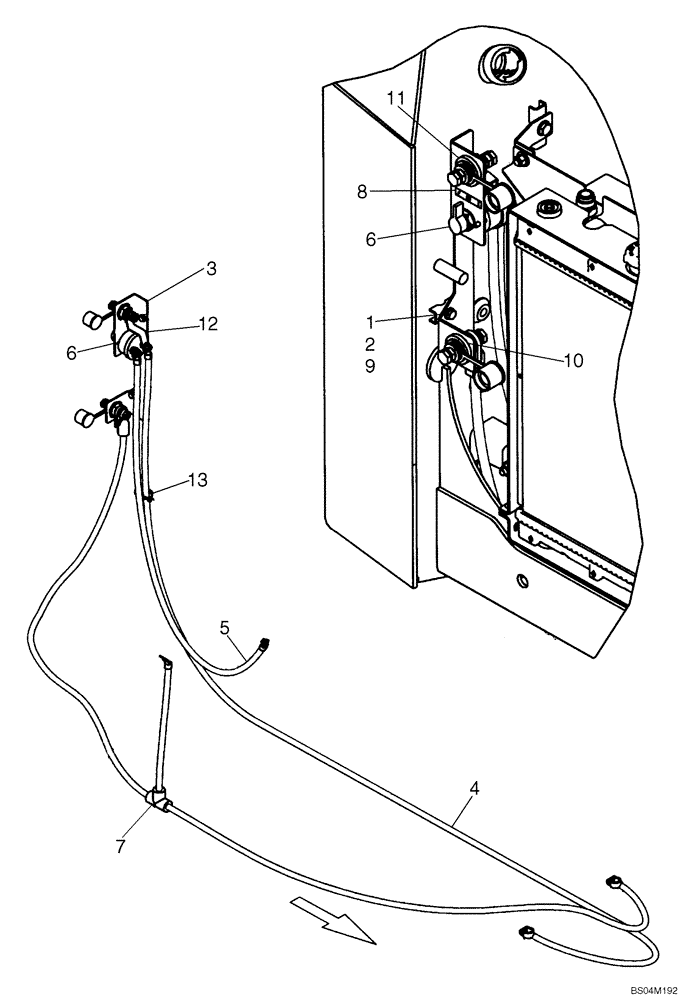

Запчасти Case IH 410 (04-18) - DISCONNECT SWITCH - REMOTE JUMP START (04) - ELECTRICAL SYSTEMS

86994303

DIA KIT, ADD PROD

Kit, Battery Disconnect And Remote Start; Incl 1 - 13

1шт.

1

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

2

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

3

87444691

BRACKET

1шт.

4

87444992

CABLE ASSY.

Negative, 2900 mm Long; Connects to Negative Battery Post

1шт.

5

87448335

CABLE ASSY.

Negative, 1200 mm Long; Connects to Engine Block

1шт.

6

87458467

ROTARY SWITCH

Master Disconnect

1шт.

7

87461420

CABLE ASSY.

Positive Cable; Connects to Starter Positive Terminal

1шт.

8

176332A1

DECAL

Battery Disconnect

1шт.

9

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square; M8

2шт.

10

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Positive; Remote Jump Start

1шт.

11

399384A1

TERMINAL CONNECTOR

Negative; Remote Jump Start

1шт.

12

399665A2

ANCHOR

Battery Jump Start

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Cable Tie

1шт.
