(04-14) - CONTROL HANDLE, RH - DELUXE W/O AUX ELECTRIC

Запчасти Case IH 410 (04-14) - CONTROL HANDLE, RH - DELUXE W/O AUX ELECTRIC (04) - ELECTRICAL SYSTEMS

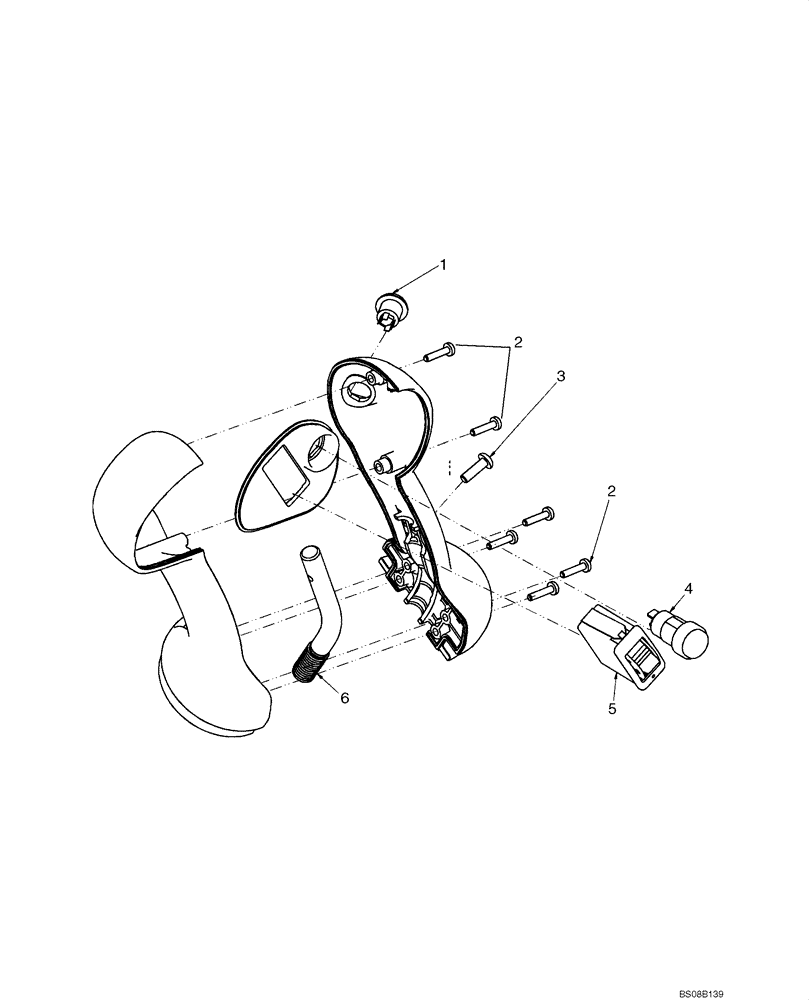

Схема запчастей Case IH 410 - (04-14) - CONTROL HANDLE, RH - DELUXE W/O AUX ELECTRIC (04) - ELECTRICAL SYSTEMS
6
1
5
3
2
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87656872

HANDLE GRIP

Control Handle, RH - Deluxe W/O Auxiliary Electric; Incl. 1-6; Incl. Wire Harness (not shown) NSS

1шт.

1

87673089

SWITCH

1шт.

2

87487159

SCREW,BTN HD, #10 - 32 x 5/8"

#6-19 X .625

6шт.

3

87487160

SCREW,Torx, Pan HD, #6 - 19 x 5/8"

#10-32 X .625

1шт.

4

87630127

SWITCH

Parking Brake

1шт.

5

87668736

SWITCH

Proportional Auxiliary Hydraulic Paddle Wheel Switch

1шт.

5

87748836

SWITCH

Proportional Auxiliary Hydraulic Knurled Wheel Switch

1шт.

6

87652816

ROD

Rod, Pilot Handle Mounting

1шт.
