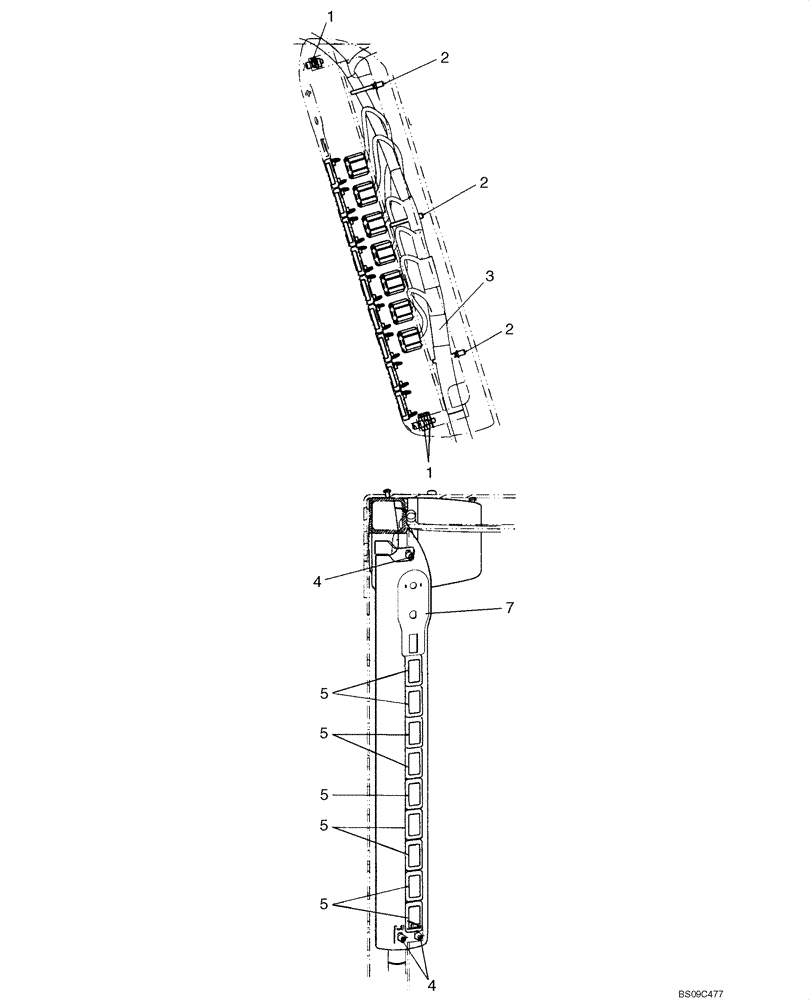

Запчасти Case IH 410 (04-10) - CONSOLE - LH (04) - ELECTRICAL SYSTEMS

87627050

CONSOLE

Console, LH; If Used

1шт.

84128477

CONSOLE

Console, LH

1шт.

1

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

2

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap With Mount

3шт.

3

87715726

HARNESS

Cab Harness; Replaces 87668728; If Used

1шт.

3

87745734

HARNESS

Cab Harness

1шт.

4

280272

HEX SOC SCREW,1/4" - 20 x 3/4"

3шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

9шт.

6

87642911

SWITCH

Hyd Coupler Rocker Switch; Not Illustrated; If Used

1шт.

7

87687238

DECAL

HVAC Control Blank; If Used; See Fig 09-65A

1шт.

7

87746893

DECAL

HVAC Control Blank; See Fig 09-65A

1шт.
