Запчасти Case IH 410 (04-09) - CONSOLE - RH (04) - ELECTRICAL SYSTEMS

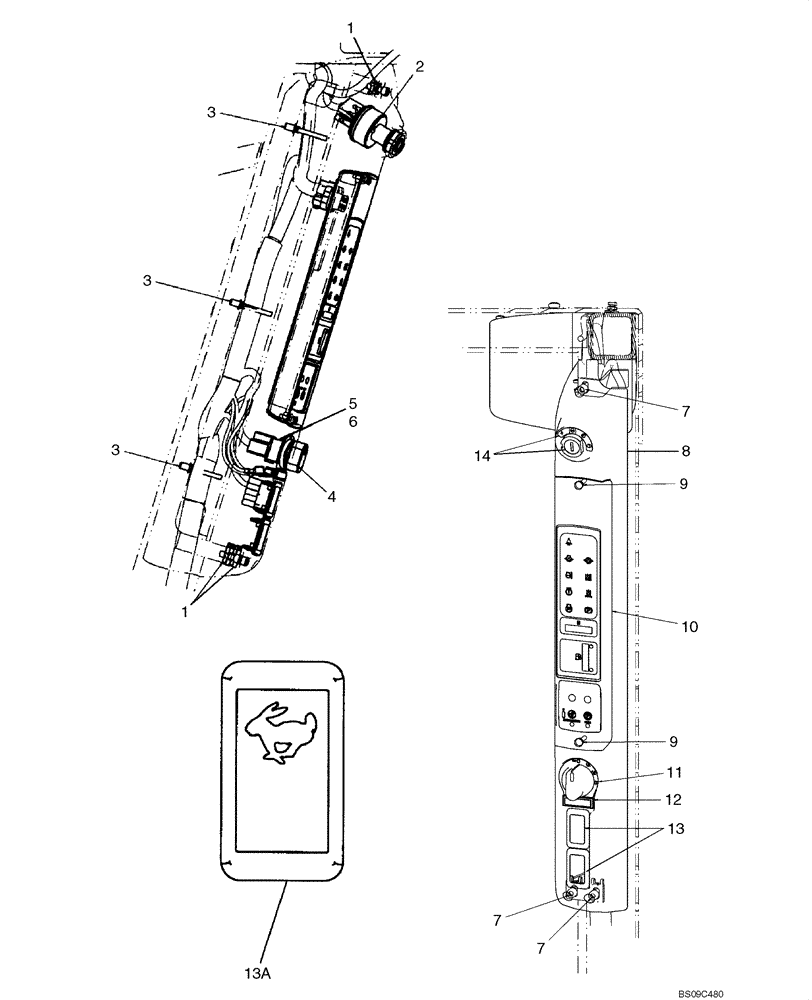

Схема запчастей Case IH 410 - (04-09) - CONSOLE - RH (04) - ELECTRICAL SYSTEMS
13
13a
3
6
12
9
9
7
3
14
8
7
11
1
10
1
2
4
5
7
3

Артикул

Название

Примечание

Количество

1

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

2

282775A1

IGNITION SWITCH

Ignition Switch And 2 Keys

1шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap With Fastener

3шт.

4

86729670

KNOB

Lights

1шт.

5

86729669

SWITCH

Blower/Light Switch

1шт.

6

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

7

280272

HEX SOC SCREW,1/4" - 20 x 3/4"

3шт.

8

87665327

CONSOLE

Console, RH; If Used

1шт.

8

84128478

CONSOLE

Console, RH

1шт.

9

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

10

87638864

INSTRUMENT PANEL

Instrument Panel, Standard (Shown In Illustration)

1шт.

10

87638864R

Remanufactured Instrument Panel

REMAN ELECT CONTROL

1шт.

10

87638864C

Return Number, INSTRUMENT PANEL

CORE-ELECTRONIC CONT

1шт.

Before Serial Number NAM421048

1шт.

10

84128950

CLUSTER

Instrument Panel, Case Deluxe; Replaces 8749421, 87638865, 87476813, 87488255

1шт.

10

84128950R

REMAN-INSTRUMENT CLUSTER Remanufactured Instrument Cluster

REMAN-INSTR CLUSTER

1шт.

10

84128950C

CORE-INSTRUMENT CLUSTER Return Number, CLUSTER

CORE-CLUSTER, INSTR

1шт.

10

84251468

MILES COUNTER DEVICE

410 After Serial Number NAM422354 NA; 410 ASN NAM421110 EU

1шт.

10

84251468R

410 SERIES 3, ASN N7M480924, After Serial Number NAM422354 NA (1/08-)

REMAN-INSTR CLUSTER

1шт.

10

84251468C

Return Number

CORE-CLUSTER, INSTR

1шт.

10

87494291C

CORE-INSTRUMENT CLUSTER Return Number, CLUSTER

CORE-CLUSTER, INSTR

1шт.

11

87677739

DECAL

Decal, Light Switch; If Used; See Fig 09-65A

1шт.

11

87492705

DECAL

Decal, Light Switch; See Fig 09-65A

1шт.

12

86627432

PLASTIC PLUG

1шт.

13

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1-2шт.

13a

87634136

SWITCH

High Speed Indicator; If Used

2шт.

14

87735655

DECAL

Decal, Key Switch;If Used; See Fig 09-65

1шт.

14

87629079

DECAL

Decal, Key Switch; See Fig 09-65

1шт.

Выбрано товаров: 28
