Запчасти Case IH 410 (04-07) - CHASSIS - ELECTRICAL (04) - ELECTRICAL SYSTEMS

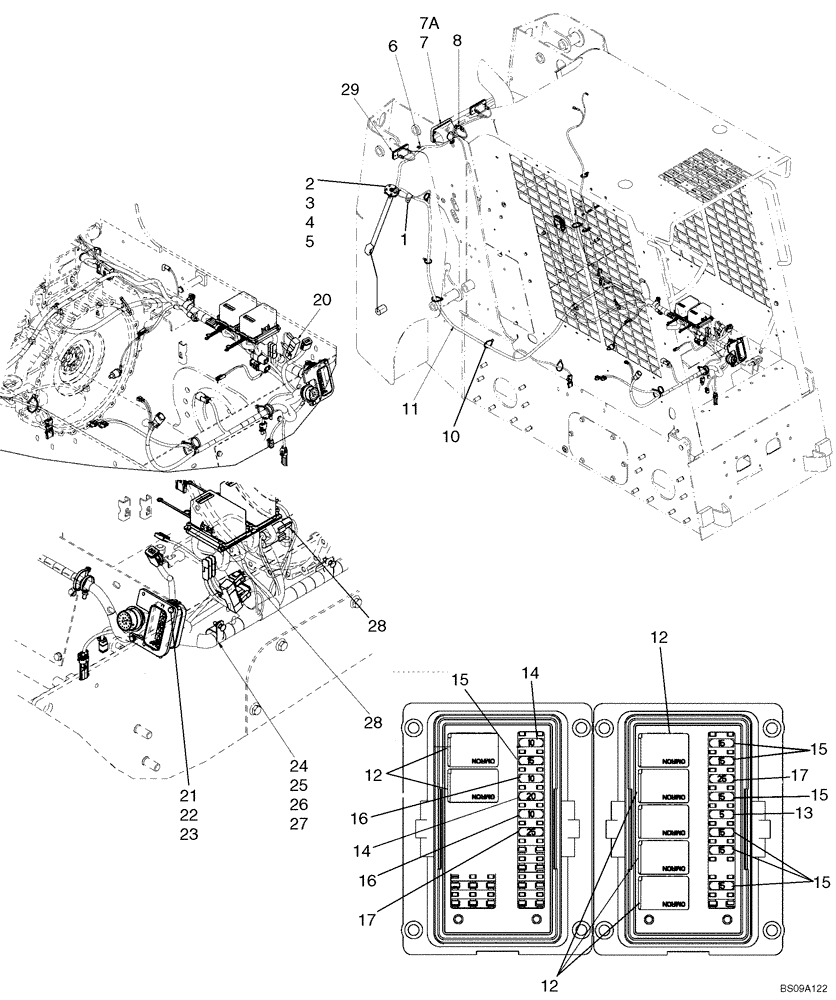

Схема запчастей Case IH 410 - (04-07) - CHASSIS - ELECTRICAL (04) - ELECTRICAL SYSTEMS
13
15
17
21
4
12
29
28
23
12
14
3
16
15
28
8
12
16
22
20
24
15
15
7a
5
1
27
25
11
26
2
14
17
6
7
10

Артикул

Название

Примечание

Количество

1

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Clamp,Closed 11.1mm Insulated 1/2 Bolt

1шт.

2

376843A4

SENDER UNIT

SENDER Fuel Level Sender Unit

1шт.

3

528359R4

GASKET,3.05mm Thk

Sender Unit Gasket

1шт.

4

87308282

SCREW,HWH, #10 - 32 x 3/4"

5шт.

5

196985A1

ROD,THREADED

THREADED ROD

5шт.

6

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

7

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Low Profile Halogen Lamp; Incl 7A

1шт.

7a

259702A1

BULB

Light Bulb, 50W 12.8V Halogen

1шт.

8

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap, Fir Tree

6шт.

10

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP Cable Tie

8шт.

11

87661493

HARNESS

Chassis Harness; Incl 12 - 18

1шт.

12

87655334

RELAY,12V, 35A, Micro

Relay,35A N.O.

7шт.

13

121410A1

FUSE,5A, Mini, Tan

1шт.

14

121412A1

FUSE,10A, Mini, Red

3шт.

15

121413A1

FUSE,15A, Mini, Blue

7шт.

16

121414A1

FUSE,20A, Mini, Yellow

1шт.

17

121415A1

FUSE,25A, Mini, Clear

2шт.

18

L71879

DIODE ELEMENT,400V, 3A

3A Diode Connector

3шт.

19

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil, Unit

1шт.

20

86705351

RESISTOR

50 ohm

1шт.

21

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

22

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

23

87030561

NUT,M6 x 1, Cl 8

2шт.

24

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

25

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

3шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

28

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

8шт.

29

233163A2

LAMP, TAIL

LIGHT, TAIL Incl Bulb 259499A1 And Screws 260-13414

2шт.

259499A1

BULB

12V-5W Britax F239

1шт.

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

2шт.

Выбрано товаров: 32
