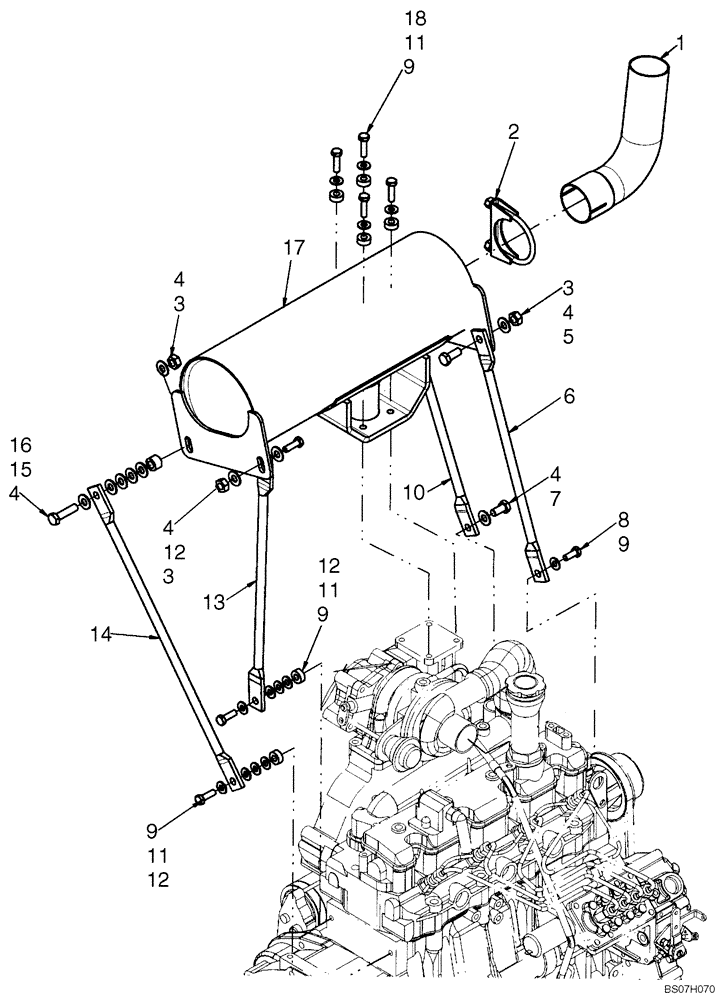

Запчасти Case IH 410 (10.254.AC) - EXHAUST SYSTEM (02) - ENGINE

1

87592051

EXHAUST SYSTEM PIPE,2.25" OD

Exhaust Tube

1шт.

2

87461995

CLAMP,68mm ID, Muffler

Muffler Clamp

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

6

87046587

ROD

351mm (13 13/16 in.) Hole To Hole

1шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

10

87711492

ROD

310mm (12 3/16 in.) Hole To Hole

1шт.

11

87606607

SPACER,8.73mm ID x 20.05mm OD x 7.9mm L

Muffler

6шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

13

87356846

MOUNTING ROD

393mm (15 1/2 in.) Hole To Hole

1шт.

14

87356847

MOUNTING ROD

452mm (17 13/16 in.) Hole To Hole

1шт.

15

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

16

87042897

SPACER

19.1mm OD

1шт.

17

87462107

MUFFLER

With Plates

1шт.

18

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

Muffler Wrap (Europe); Not Illustrated

1шт.
