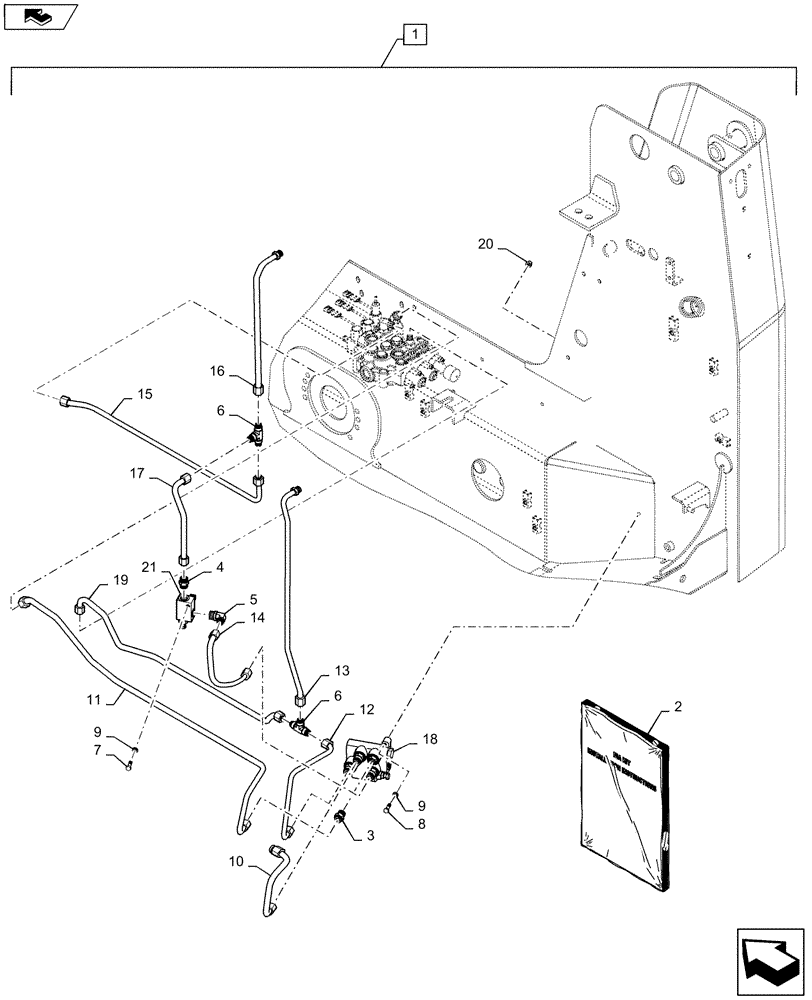

Запчасти Case IH 410 (88.035.01) - DIA KIT, SINGLE HYDRAULIC SELF LEVEL (88) - ACCESSORIES

1

87712601

SERVICE KIT

Single Hydraulic Self Level, Incl 2 - 21

1шт.

2

87710785

Installation, Self Level

INSTRUCTION

1шт.

3

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

2шт.

4

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

3шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

Union

2шт.

7

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

8

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

87412217

TUBE,15.88 mm OD x 132.5, 120.8 mm L

Avalve Out

1шт.

11

87421301

HYD TUBE,15.88 mm OD

Lift Lowe 5/8 Tube

1шт.

12

87421448

HYD TUBE,12.7 mm OD x 216.1, 197.1 mm L

Avalve, Bucket Base

1шт.

13

87421452

HYD TUBE,12.7 mm OD x 674.7, 87 mm L

Atip Dump

1шт.

14

87421454

HYD TUBE,12.7 mm OD x 132, 101.7 mm L

Aself Level To Relief

1шт.

15

87436538

HYD TUBE,12.7 mm OD

Tip Curl Self Level

1шт.

16

87436539

HYD TUBE,12.7 mm OD

Tip Curl Self Level

1шт.

17

87445306

HYD TUBE,12.7 mm OD

Valve, Bucket Rod

1шт.

18

87447793

VALVE

Self Level

1шт.

19

87703502

HYD TUBE

Dump, Self Level

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

21

294650A1

VALVE

In-Line Relief

1шт.
