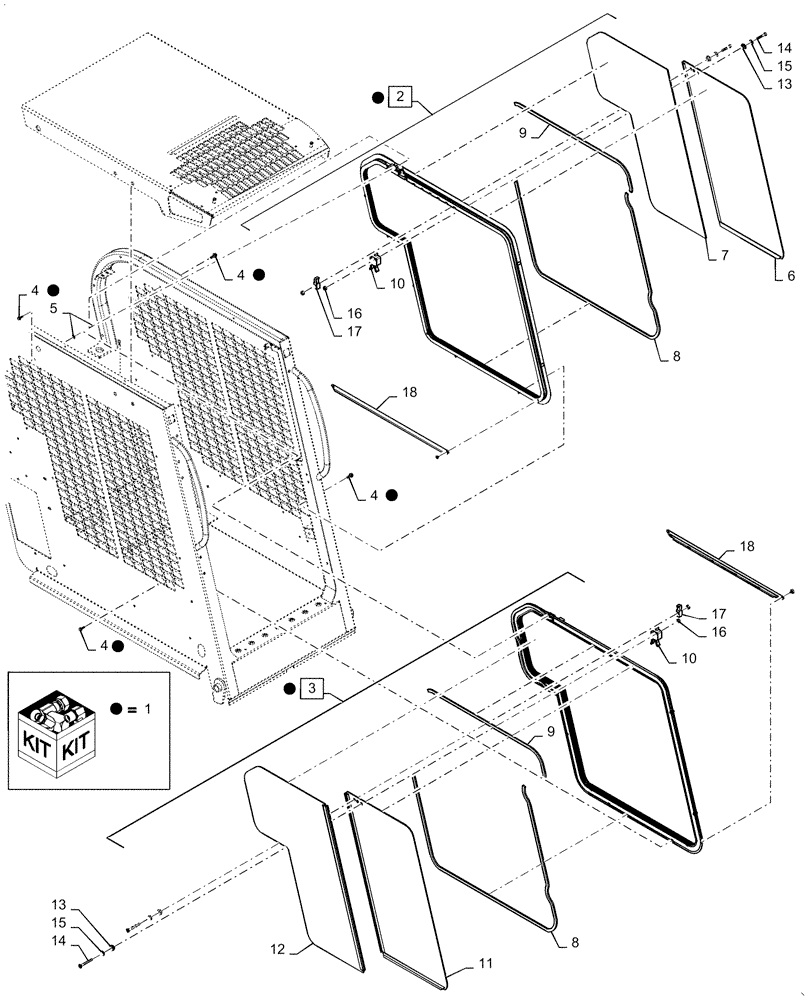

Запчасти Case IH 410 (09-55) - SIDE WINDOWS (09) - CHASSIS

1

87638358

SERVICE KIT

Side Windows, Includes: Ref. 1 - 4 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

87494763

WINDOW

LH, Includes: Ref. 6 - 10

1шт.

3

87494772

WINDOW

RH, Includes: Ref. 8 -12

1шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

16шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

87498561

WINDOW

LH Front

1шт.

7

87498562

WINDOW

LH Rear

1шт.

8

84129656

SEAL,3532.5mm L

2шт.

9

84129657

SEAL, GLASS

2шт.

10

87620986

LATCH

Window, Mounting

2шт.

11

87498563

WINDOW

RH Front

1шт.

12

87498564

WINDOW

RH Rear

1шт.

13

87653402

BUSHING

Latch Mounting

2шт.

14

87670692

SCREW,M8 x 1.25mm

Latch Mounting

2шт.

15

87653400

WASHER

Latch Mounting

2шт.

16

87670693

NUT

Latch Mounting

2шт.

17

47752892

GUIDE

Rubber Stop Block

4шт.

18

47752899

Window

GUIDE

2шт.
