Запчасти Case IH 410 (09-50A) - HEATER SYSTEM (09) - CHASSIS

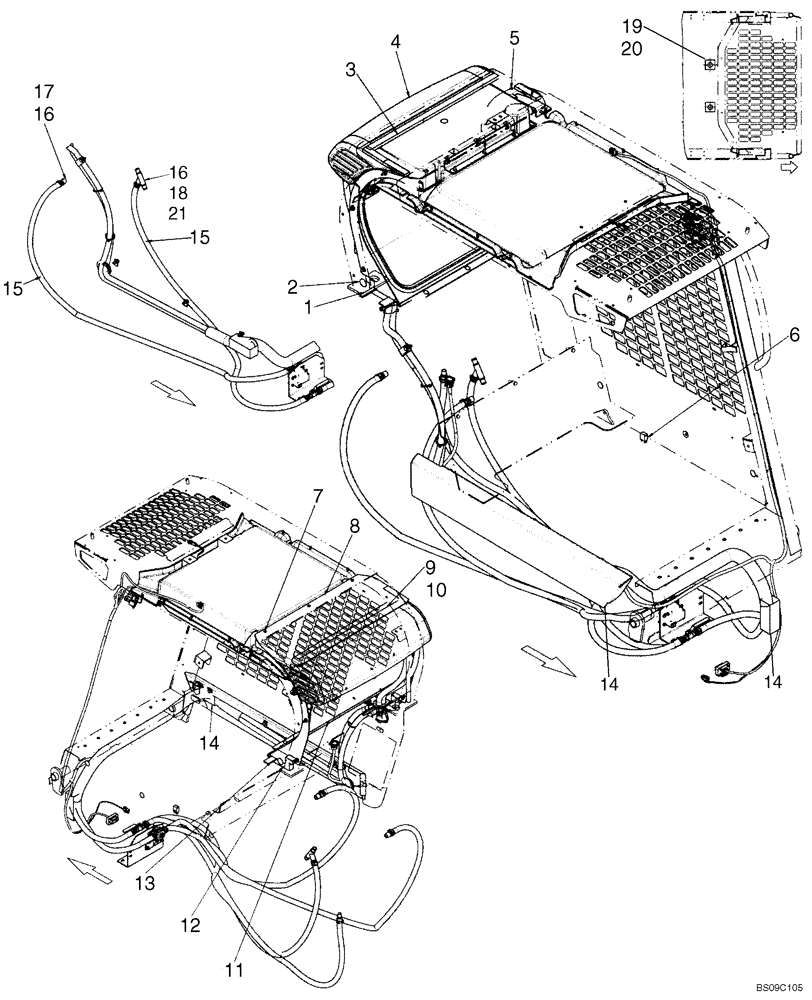

Схема запчастей Case IH 410 - (09-50A) - HEATER SYSTEM (09) - CHASSIS
10
18
2
14
11
7
6
15
9
14
3
21
16
4
12
1
20
16
17
13
5
19
8
15

Артикул

Название

Примечание

Количество

87638262

SERVICE KIT

Deluxe Heater Kit; Incl 1-20 And Fig 09-50 Ref 1-43

1шт.

1

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

2

87746892

DECAL

Key Blank

2шт.

3

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen

3шт.

4

84129072

Heater Assy; Incl 87653394 And 84146888

1шт.

4

87653394

HEATER

HVAC Assy; Se Fig 09-60

1шт.

5

87035391

SELF-TAP SCREW,Pan Hd, M4.8 x 38

2шт.

6

87655334

RELAY,12V, 35A, Micro

35A N.O.

1шт.

7

87492860

SELF-TAP SCREW,1/4" - 20 x 3/4"

3шт.

8

87492414

PLATE

Cover Plate HVAC

1шт.

9

87742340

SCREW,Pan, M6 x 25mm, Cl 4.8

2шт.

10

87436247

THREADED INSERT

M6

2шт.

11

87661763

RUBBER SEAL

Rubber Seal, Adhesive Bulb

1шт.

12

87496285

FOAM INSULATION

Foam Seal

2шт.

13

291809

SEALING STRIP

Sealing Strip, 0.5 Ft Required

1шт.

14

87729516

FOAM INSULATION

Cruchable Foam

2-4шт.

15

87691475

HEATER HOSE,15.75" mm ID, 1975.00 mm, SAE 20R3, SAE J20

2шт.

16

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24mm

2шт.

17

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

18

86530043

FITTING,5/8” Y-Fitting

Y Hose Beaded

1шт.

19

87713668

FASTENER

Push In

2шт.

20

87743081

FASTENER

Spacer

2шт.

21

9706921

HOSE CLAMP,12.7mm - 35mm

Use With Ref 18

3шт.

Выбрано товаров: 23
