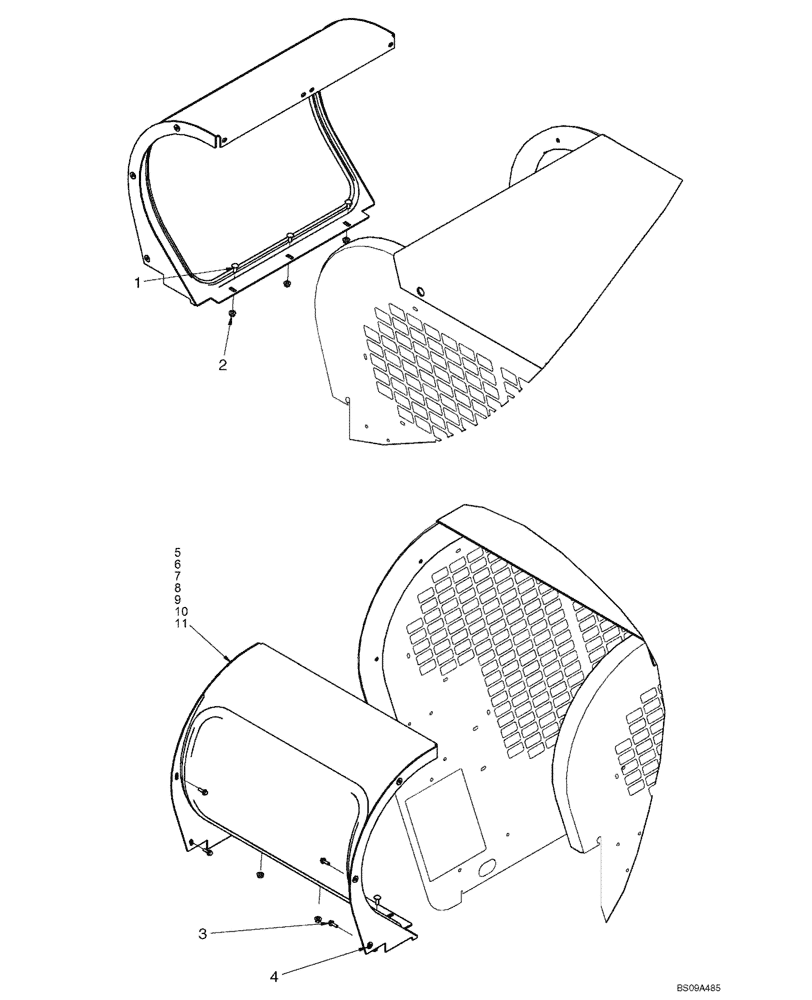

Запчасти Case IH 410 (09-34) - REAR WINDOW (09) - CHASSIS

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

3шт.

1

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

2

43362

NUT,M8 x 1.25, Cl 10

If Used

3шт.

2

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

9шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

6шт.

4

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

5

87626406

WINDOW

Rear Window Assy; Incl 6 - 11; If Used

1шт.

5

87470202

WINDOW

Rear Window Assy; Incl 6 - 11

1шт.

6

87643810

PLASTIC

Key Locking

1шт.

7

87626403

PLASTIC

Seal, H-Channel

1шт.

8

87626402

CAB GLASS ASSY

Rear Window Glass

1шт.

9

NSS

NOT SOLD SEPARAT

Rear Window Frame; Used With Assy 87626406

1шт.

9

NSS

NOT SOLD SEPARAT

Rear Window Frame- Gray; Used With Assy 87470202

1шт.

10

87026871

PLASTIC SIGN

Exit Tag

1шт.

11

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.
