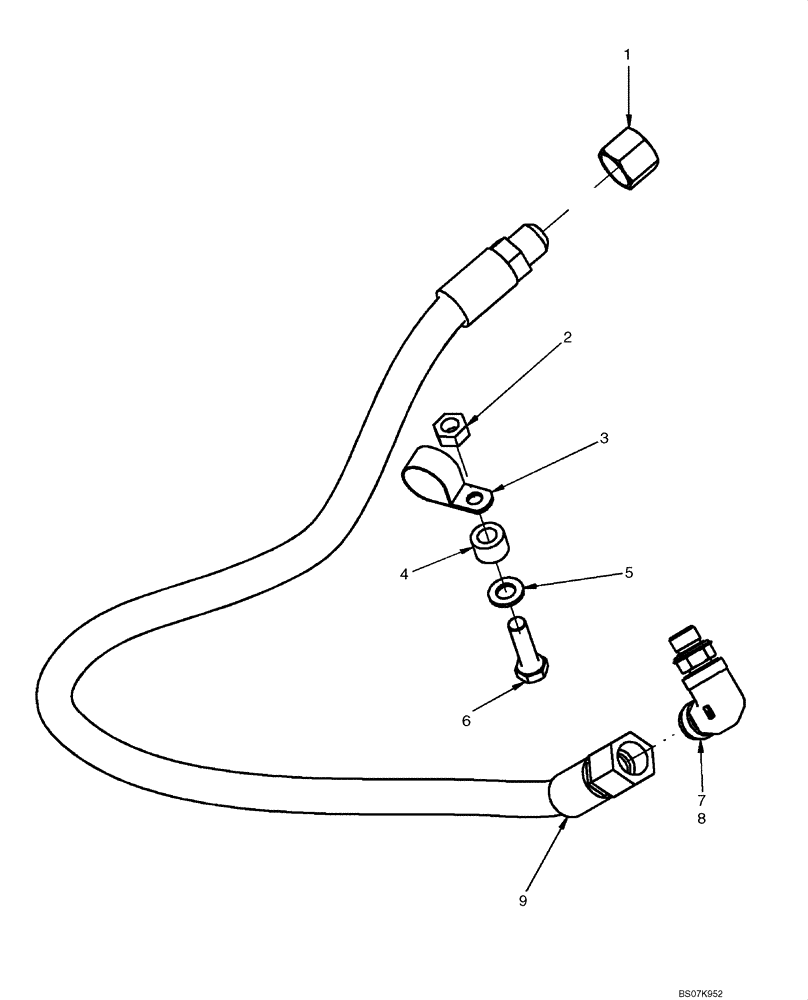

Запчасти Case IH 410 (02-08) - REMOTE OIL DRAIN (02) - ENGINE

1

129200

CAP,7/8" - 14 JIC

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

If Used; Used With M10 Bolt Ref 6, 9706704

1шт.

3

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

2

9706690

NUT,M8 x 1.25, Cl 8

If Used; Used With M8 Bolt Ref 6, 43129

1шт.

4

87042897

SPACER

If Used; Used With M10 Bolt Ref 6, 9706704

1шт.

4

229398

SPACER,9.78mm ID x 15.88mm OD x 19.05mm L

If Used; Used With M8 Bolt Ref 6, 43129

1шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used; Used With M10 Bolt Ref 6, 9706704

1шт.

7

87691909

HYD TUBE

Fitting, Remote Oil Drain; Incl 8

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used; Used With M8 Bolt Ref 6, 43129

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

If Used

1шт.

6

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

If Used

1шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

9

87694058

HOSE,12.7mm ID x 730mm L

Remote Oil Drain, 730mm (28 3/4 in.)

1шт.
