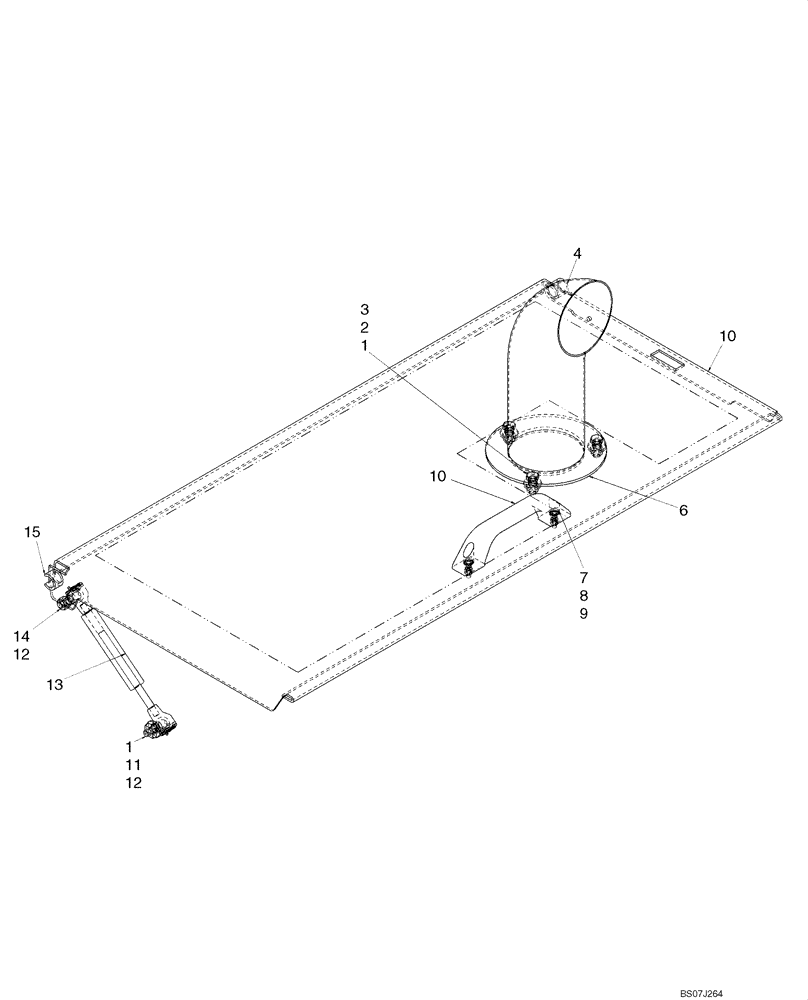

Запчасти Case IH 410 (09-21) - HOOD (09) - CHASSIS

1

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

2

9628098

NUT,M8 x 1.25, Cl 10

3шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

4

435396A1

SPACER

1шт.

5

87462015

HOOD

Frame, Rear Hood; No Longer Used, Order 87680199

1шт.

5

87680199

HOOD

Frame, Rear Hood

1шт.

6

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Extension; 268 mm (10.55 in) Tall; If Used

1шт.

6

87725355

EXHAUST SYSTEM PIPE

Exhaust Extension; 243 mm (9.57 in) Tall; If Used

1шт.

7

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

8

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

9

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

10

406256A1

HANDLE

1шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

12

189609A1

BALL STUD,M8 x 1.25

Ball Stud, 10mm Ball X M8 X 1.25 Thd

2шт.

13

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

1шт.

14

412250

NUT,M8 x 1.25, Cl 8

1шт.

15

87429698

SPACER

1шт.
