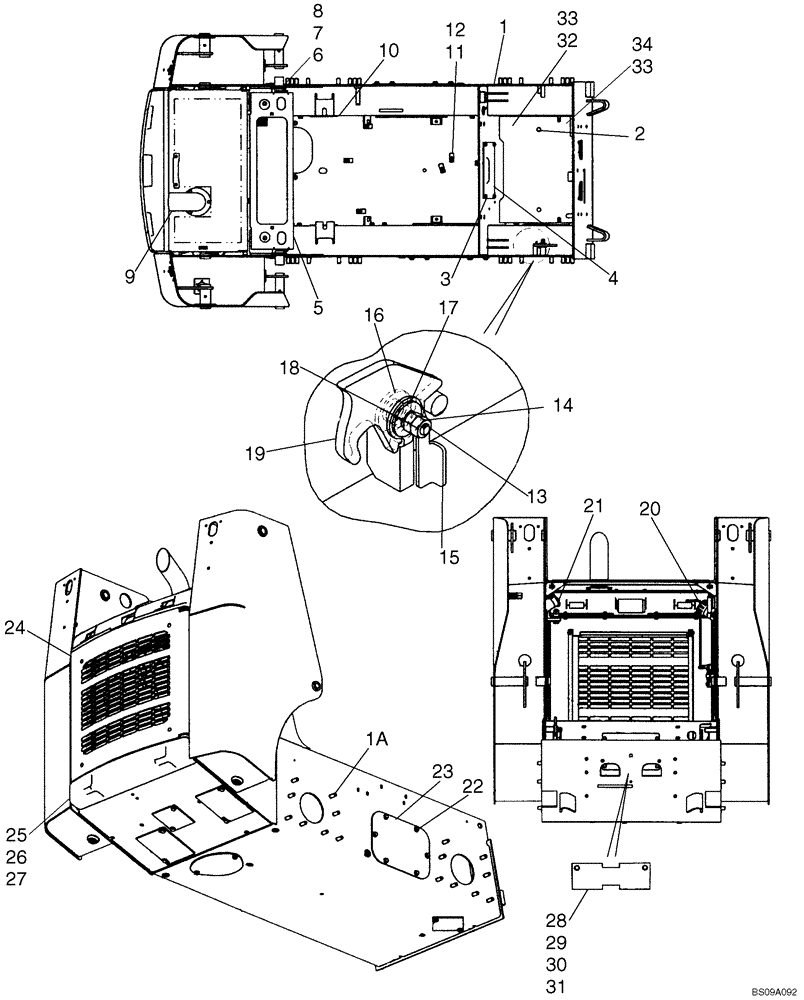

Запчасти Case IH 410 (09-12) - CHASSIS (09) - CHASSIS

1

87666101

SERVICE KIT

Chassis Frame; Incl 20, 21, Fuel Sender And Gasket

1шт.

1a

277450A1

STUD,M16 x 2 x 40mm, Cl 10.9

M16x40; Studs For Axle Mounting

32шт.

2

87659972

Floor Plate

PLATE

1шт.

2

87705430

FLOOR MAT

Composite Floor Plate

1шт.

3

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

4

87430679

PLATE

1шт.

5

87661305

INSULATING PANEL

Heat Shield Extension

1шт.

5

87743315

INSULATING PANEL

Heat Shield Extension, Gray

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

REF

INSTRUCTION

Hood, Engine; See Figure 09-21

1шт.

10

86991034

PLUG

Axle Access; If Used

4шт.

11

NSS

NOT SOLD SEPARAT

Screw

1шт.

12

NSS

NOT SOLD SEPARAT

Spacer

1шт.

13

294943A1

STUD

1шт.

14

86500689

NUT,M10 x 1.5, Cl 10

2шт.

15

294911A2

HOOK

Plate

1шт.

16

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

17

294967A1

WASHER

1шт.

18

278332A1

SPRING WASHER

Spring

1шт.

19

390516A3

LATCH

Plate; ROPS Latch

1шт.

20

257448A1

CAP

Oil Filler; Incl. 292259A1 20A

1шт.

20a

292259A1

SEAL

Filler Cap

1шт.

21

H436887

CAP

Fuel; Non-Locking

1шт.

21

108925A1

FILLER CAP

Fuel; Locking; If Used

1шт.

22

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

23

87411208

COVER PLATE

2шт.

24

REF

INSTRUCTION

Rear Door; See Figure 09-23

1шт.

24

REF

INSTRUCTION

Rear Door, Louvered (Europe); See Fig 09-24

1шт.

25

86536985

NUT,M20 x 2.5, Cl 10

2шт.

26

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

27

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

28

87461248

PLATE

Plate Cover, Front Plate

1шт.

29

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

30

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

31

86512554

NUT,M10 x 1.5, Cl 10

2шт.

32

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2-3шт.

33

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

0.344 x 0.688 x 0.065 CST ZND

3-4шт.

34

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.
