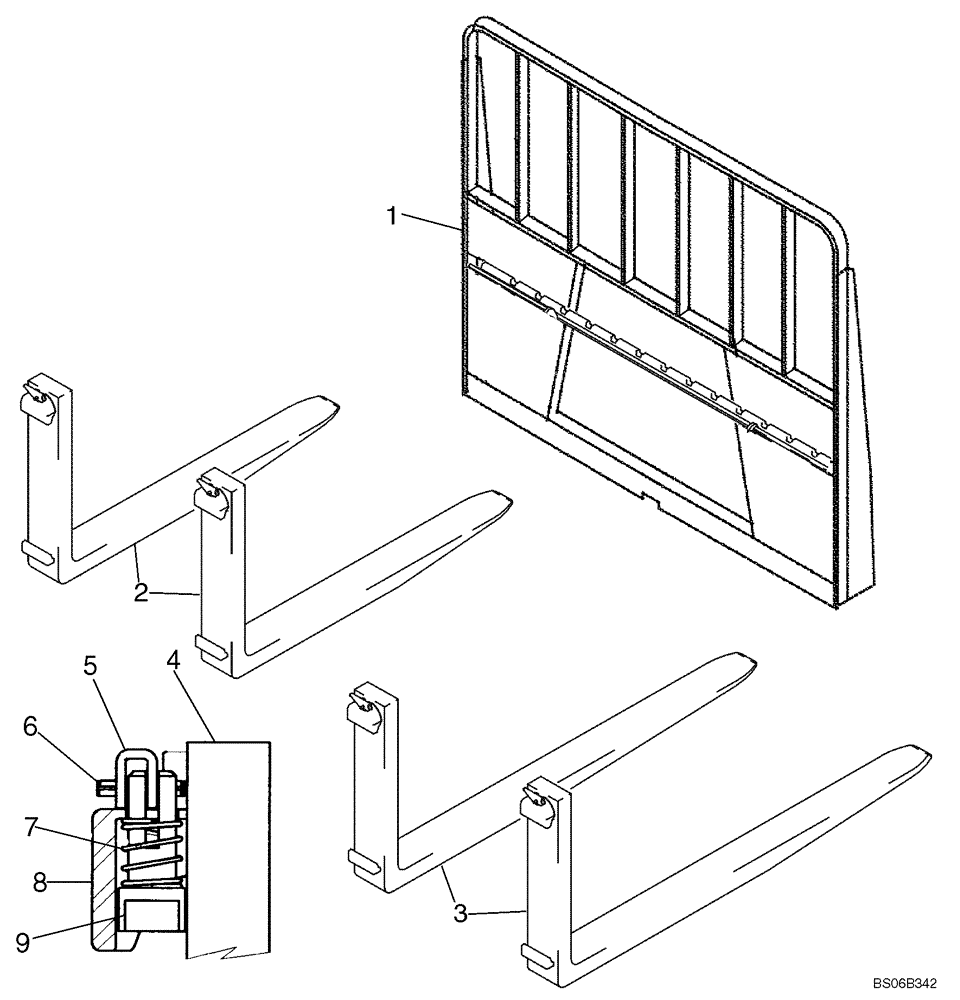

Запчасти Case IH 410 (09-11) - PALLET FORK (09) - CHASSIS

1

86639773

MOUNTING PARTS

Pallet Fork

1шт.

2

86589764

CONSTRUCTION DIA

42 in. Pallet Fork Set; Incl. 86574054

1шт.

86574054

BUCKET FORK

Fork Assy; 42 in.; Incl. 4 - 9

2шт.

3

86589765

CONSTRUCTION DIA

48 in. Pallet Fork Set; Incl. 86574055

1шт.

86574055

BUCKET FORK,48" L

Fork Assy; 48 in.; Incl. 4 - 9

2шт.

4

NSS

NOT SOLD SEPARAT

Fork Arm

1шт.

5

226129

HANDLE

1шт.

6

118827

PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

7

9800081

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

Top Hook

1шт.

9

226130

PIN,15.24mm OD x 50.8mm L

1шт.
