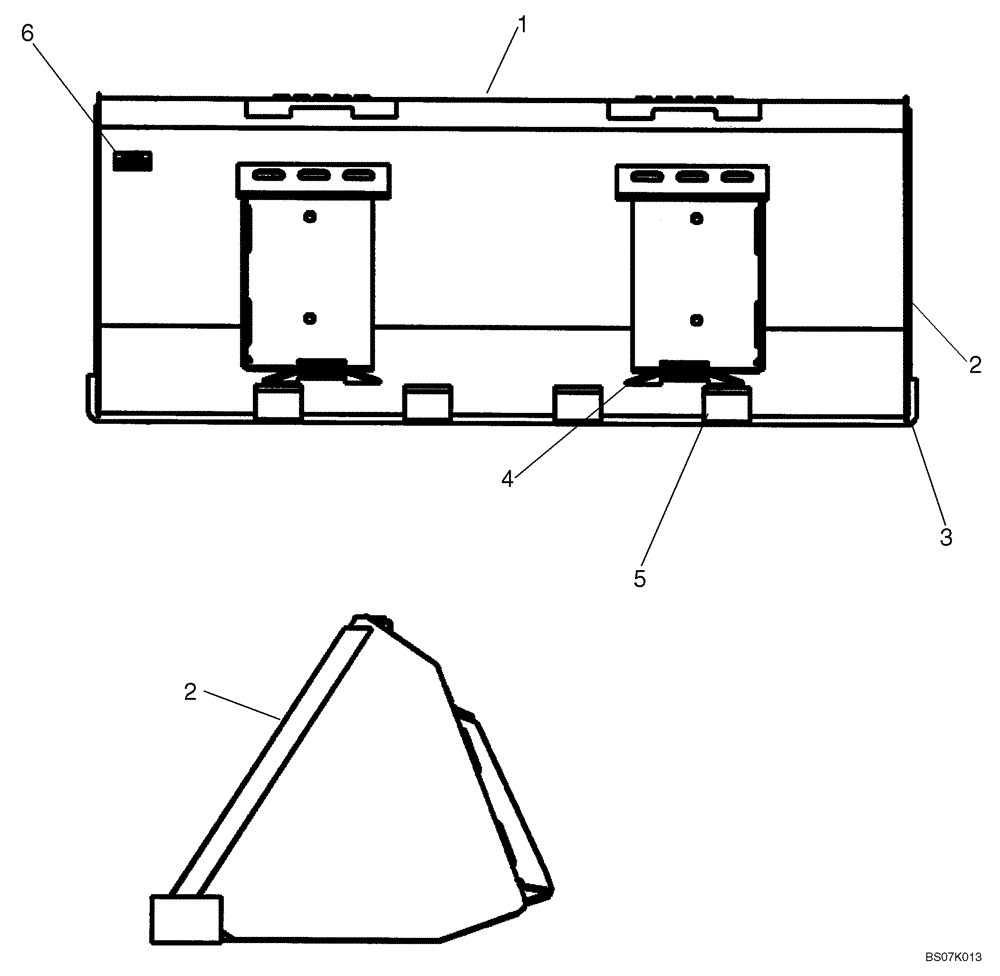

Запчасти Case IH 410 (09-07) - BUCKETS - LOADER, UTILITY / LIGHT MATERIAL (09) - CHASSIS

REF

INSTRUCTION

UTILITY / LIGHT MATERIAL

1шт.

1

87010187

BUCKET, 1524 mm (60 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

86501801

CUTTING EDGE

2шт.

3

86577164

CUTTING EDGE

60 in

1шт.

4

9822175

PLATE

2шт.

5

86501839

BAR

Skid Bar

3шт.

6

NSS

NOT SOLD SEPARAT

Decal

1шт.

1

87010188

BUCKET, 1829 mm (72 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

86501801

CUTTING EDGE

2шт.

3

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

72 in

1шт.

4

9822175

PLATE

2шт.

5

86501815

BAR

Skid Bar

4шт.

6

NSS

NOT SOLD SEPARAT

Decal

1шт.

1

87010189

BUCKET, 2134 mm (84 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

86501801

CUTTING EDGE

2шт.

3

86900574

CUTTING EDGE

84 in

1шт.

4

9822175

PLATE

2шт.

5

86501815

BAR

Skid Bar

5шт.

6

NSS

NOT SOLD SEPARAT

Decal

1шт.
