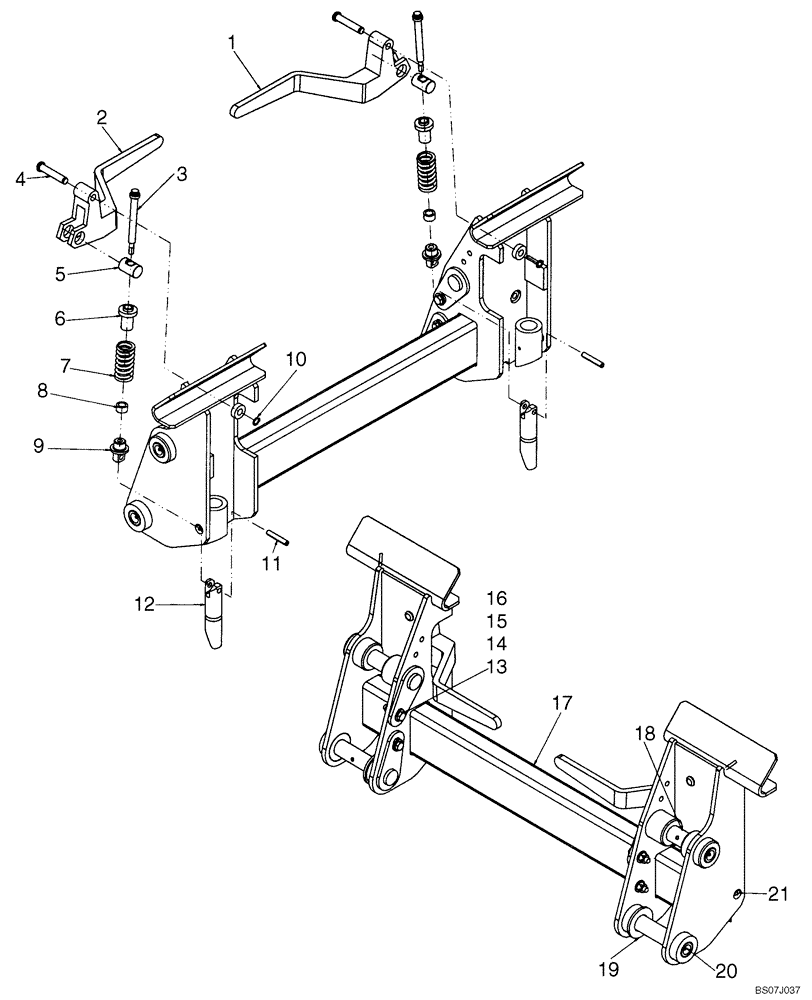

1
86633195
HANDLE
Handle, LH
1шт.
2
86633196
HANDLE
Handle, RH
1шт.
3
87533223
12 PT SCREW,3/8" - 16 x 5", Gr 8
CS12PT Shoulder Bolt, 1/2 X 4.0
2шт.
4
87387540
PIN,12.7mm OD x 67.55mm L
2шт.
5
9829733
PIN,25.4mm OD x 39mm L
2шт.
6
86610166
GUIDE,13.5mm ID x 22mm OD x 46.6mm L
Spring Guide
2шт.
7
86610167
SPRING,Compression, 35.15mm OD x 101.6mm L
2шт.
8
87412041
SPACER,13.88mm ID x 21.34mm OD x 12mm L
Bushing Spacer
2шт.
9
87579303
PIN,34.92mm OD x 43.6mm L
Pin
2шт.
10
87612753
RETAINER,#50, 0.46", Ext
Retaining Ring, External #50 PLN
2шт.
11
86624092
PIN,9.53mm OD x 50.8mm L
2шт.
12
87413030
PIN
Latch Pin; If Used
2шт.
12
87758365
PIN,31.75mm OD x 142.3mm L
Latch Pin
2шт.
13
120112
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
4шт.
14
86625253
WASHER,11mm ID x 24mm OD x 2mm Thk
8шт.
15
86512554
NUT,M10 x 1.5, Cl 10
4шт.
16
906091R1
SPACER,10.7mm ID x 17.14mm OD x 9.5mm L
3/8" Pipe X 3/8" Length
4шт.
17
404599A5
FRAME,W/Coupler
1шт.
Does Not Include Pins, Handles, or Any Hardware
1шт.
Does Not Include Pins, Handles, or Any Hardware
1шт.
18
87659406
PIN,31.75mm OD x 169.2mm L
4шт.
19
86512837
WASHER,1.38" ID x 2.5" OD x 0.17" Thk
2шт.
20
80710
LUBE NIPPLE,1/8” – 27 Dryseal PTF
4шт.
21
87414
LUBE NIPPLE,1/4" - 28
2шт.
