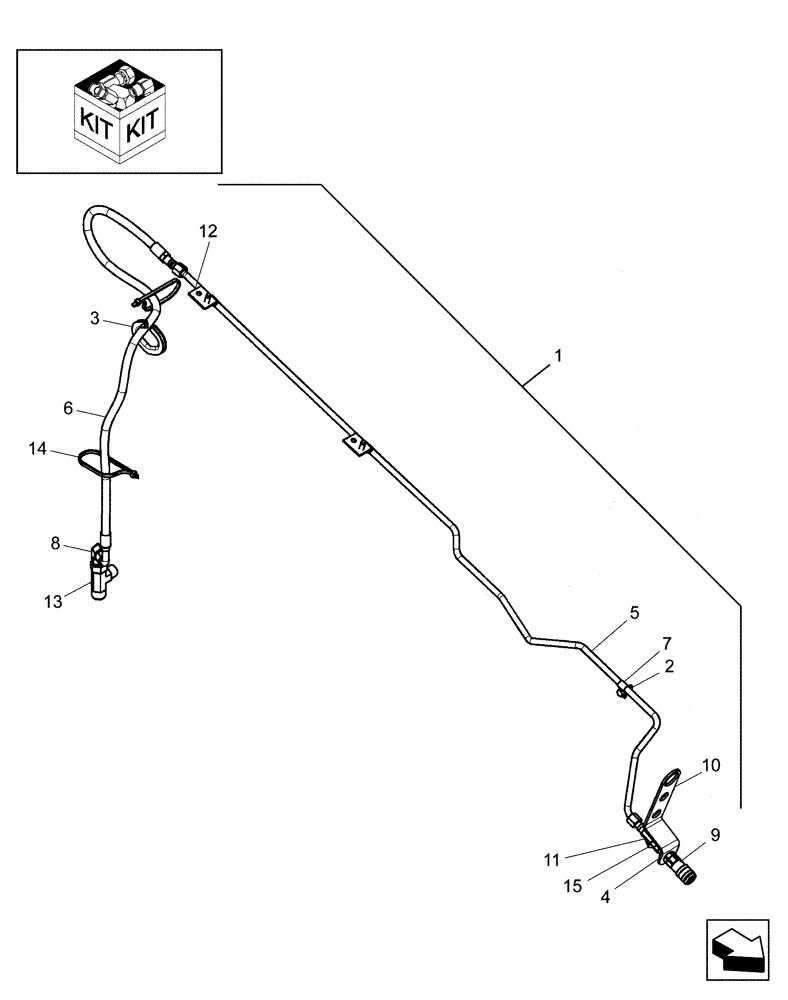

Запчасти Case IH 410 (08.40[2]) - KIT, CASE DRAIN HIGH FLOW (08) - HYDRAULICS

1

0C

ORDER COMPONENTS

Case Drain, High-Flow Kit {84177563}, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

3

291186

PROTECTION STRIP,9.9mm W

Edge

1шт.

4

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

5

84141252

HYD TUBE,12.70 mm OD

Hyd. Case Drain Hi-Flow

1шт.

6

84145939

HOSE,9.53mm ID x 1275mm L

Loader Arm Case Drain

1шт.

7

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

8

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

9

87019286

COUPLING

Female, 8MBF

1шт.

10

87023530

BRACKET

1шт.

11

87426293

TEE

37° FL, 1/2" x 3/4" Tube

1шт.

12

87447813

BRACKET

2шт.

13

87690479

TEE

37° FL, 1/2" x 1/2" x 1/2"

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

15

262159

CAP,3/4" - 16 Fem JIC

1шт.
