Запчасти Case IH 410 (08-17) - HIGH FLOW, SUPPLY AND RETURN (08) - HYDRAULICS

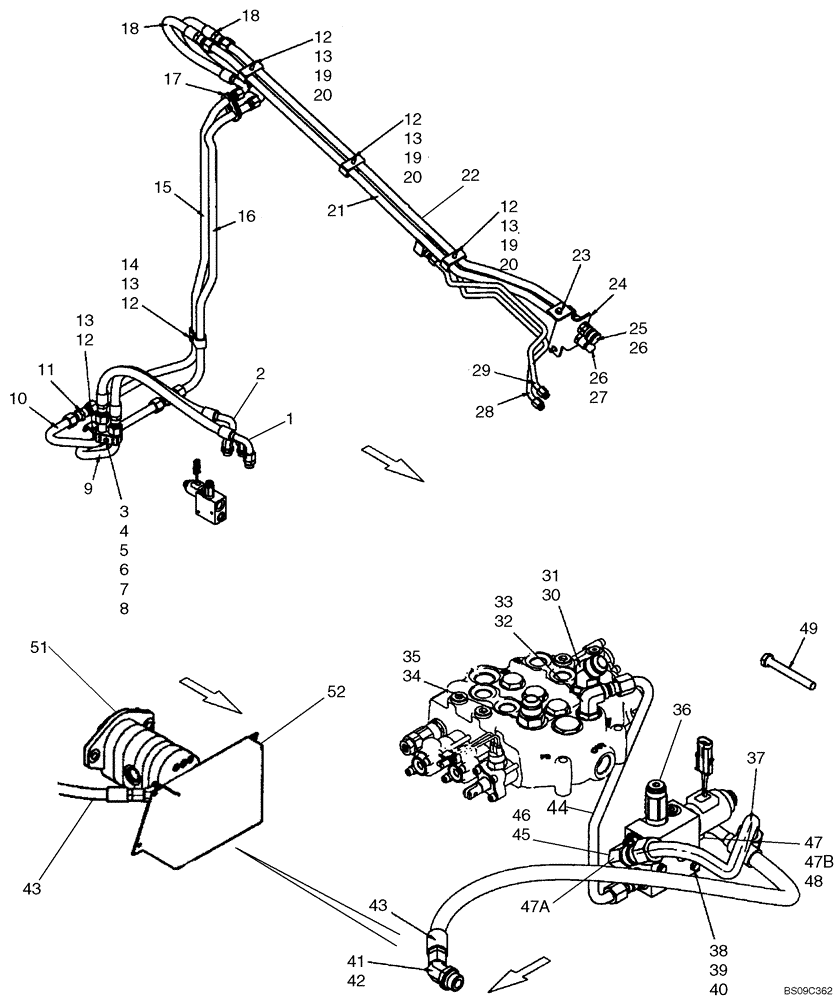

Схема запчастей Case IH 410 - (08-17) - HIGH FLOW, SUPPLY AND RETURN (08) - HYDRAULICS
6
42
18
27
16
29
47b
5
19
38
20
37
43
13
47a
46
52
31
35
12
40
17
23
28
26
49
45
22
14
13
13
33
24
20
26
19
2
43
39
13
15
48
13
34
7
8
18
19
51
12
20
3
12
47
36
12
12
44
4
1
11
32
41
10
21
30
25
9

Артикул

Название

Примечание

Количество

87663453

SERVICE KIT

Kit, High Flow Bi-Directional Gear; Incl 1 - 52 And Parts On Fig 02-23

1шт.

1

87020053

HOSE,19.05mm ID x 900mm L, SAE 100R17

900mm (35 7/16 in.)

1шт.

2

87020054

HOSE,19.05mm ID x 760mm L

760mm (29 15/16 in.)

1шт.

3

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

4

194739A1

LEDGER PLATE

If Used

1шт.

5

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

6

80681

LOCK WASHER,5/16"

1шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1-2шт.

8

9628098

NUT,M8 x 1.25, Cl 10

1шт.

9

87436533

HYD TUBE,25.40 mm OD

1шт.

10

87448072

HYD TUBE,25.4 mm OD

1шт.

11

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

2шт.

12

87020743

BRACKET

5шт.

13

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

5шт.

14

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

15

87448073

HYD TUBE,25.4 mm OD

1шт.

16

87436536

HYD TUBE,25.40 mm OD

1шт.

17

87017999

SUPPORT

2шт.

18

87654422

HOSE

646mm (25 7/16 in.); If Used

2шт.

18

87020048

HOSE,19.05mm ID x 675mm L

High Flow; 675mm (26.58in)

2шт.

19

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3шт.

20

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

3шт.

21

87024207

HYD TUBE,25.40 mm OD

1шт.

22

87023856

HYD TUBE,25.40 mm OD

1шт.

23

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

24

87023398

BRACKET

1шт.

25

87022671

COUPLING, QUICK, FEM

5/8 Female Coupler

1шт.

26

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

27

87022672

QUICK MALE COUPLING

5/8 Male Coupler

1шт.

28

87023855

HYD TUBE,15.88 mm OD

1шт.

29

87023854

HYD TUBE,15.88 mm OD

1шт.

30

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 31

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 33; If Used

1шт.

32

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 33

1шт.

33

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 35

1шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

87012669

VALVE

See Fig. 08-18

1шт.

37

87549660

HYD TUBE,16.57 mm ID x 19.05 mm OD x 217.5, 111.1 mm L

Valve To Filter

1шт.

38

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

39

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

40

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

41

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

Incl. 42

1шт.

42

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

87653903

HOSE,12.70 mm ID x 4050.00 mm, SAE J846

1шт.

44

87549658

HYD TUBE,9.4 mm ID x 12.7 mm OD x 336.7, 63.8 mm L

Tube, High Flow; If Used

1шт.

44

87714069

HYD TUBE,15.9 mm OD x 336.3, 196 mm L

High Flow Supply; If Used

1шт.

44

87499842

HYD TUBE,15.9 mm OD x 336.3, 196 mm L

High Flow Supply

1шт.

45

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 46

1шт.

46

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 48; If Used

2шт.

47a

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 48

1шт.

47b

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 48; Connector 37FL X ORB -08

1шт.

48

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

49

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

50

87414769

SWITCH

Rocker Switch, High Flow; Not Illustrated

1шт.

51

87613384

PUMP

DB Gear, 1.55 / 0.58

1шт.

52

87460011

COVER

Heelplate

1шт.
