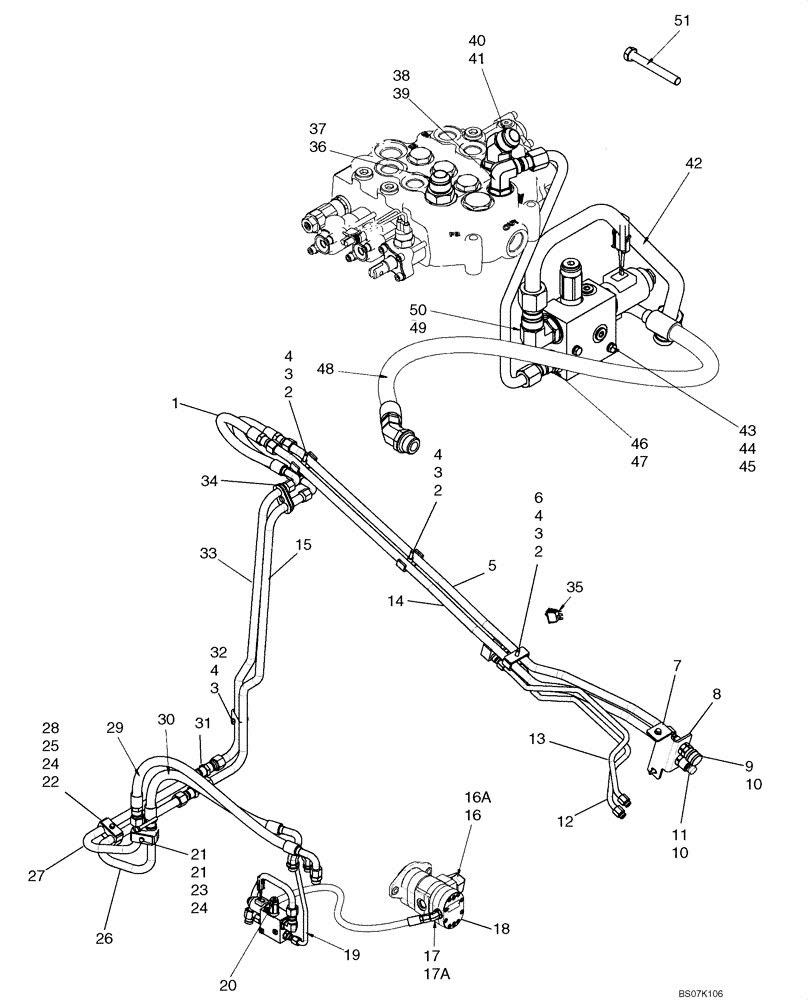

Запчасти Case IH 410 (08-16) - HIGH FLOW HYDRAULICS - PILOT CONTROL (08) - HYDRAULICS

1

87020048

HOSE,19.05mm ID x 675mm L

675mm (26 9/16 in.)

2шт.

2

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3шт.

3

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

4шт.

4

87020743

BRACKET

4шт.

5

87023470

HYD TUBE,25.40 mm OD

1шт.

6

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

7

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

8

87023398

BRACKET

1шт.

9

87022671

COUPLING, QUICK, FEM

5/8 Female Coupler

1шт.

10

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

11

87022672

QUICK MALE COUPLING

5/8 Male Coupler

1шт.

12

87023472

HYD TUBE,15.88 mm OD

1шт.

13

87023471

HYD TUBE,15.88 mm OD

1шт.

14

87023469

TUBE,25.40 mm OD

1шт.

15

87554200

HYD TUBE,19.3 mm ID x 25.4 mm OD x 1000.3, 338.6 mm L

High Flow Auxiliary

1шт.

16

87599598

HYD CONNECTOR

Stem 45 Bead Hose 1.25 ID X 1 5/8 - 12; Incl 16A

1шт.

16a

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

17

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

Incl 17A

1шт.

17a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

87551795

PUMP,36 CC

Gear Pump; See Fig 06-19

1шт.

19

87549658

HYD TUBE,9.4 mm ID x 12.7 mm OD x 336.7, 63.8 mm L

Tube, High Flow Supply

1шт.

20

87012669

VALVE

See Fig. 08-18

1шт.

21

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

22

80681

LOCK WASHER,5/16"

2шт.

23

9628098

NUT,M8 x 1.25, Cl 10

1шт.

24

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

3шт.

25

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

26

87026696

HYD TUBE,25.40 mm OD x 439.50, 190.20 mm L

1шт.

27

87026695

TUBE,25.40 mm OD x 556.80, 146.80 mm L

1шт.

28

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

29

87453999

HOSE ASSY.

1020mm (40 5/32 in.)

1шт.

30

87454000

HOSE ASSY.

860mm (33 7/8 in.)

1шт.

31

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

2шт.

32

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

33

87554226

HYD TUBE,19.3 mm ID x 25.4 mm OD x 1027.4, 129.5 mm L

High Flow Auxiliary

1шт.

34

87017999

SUPPORT

2шт.

35

87414769

SWITCH

Rocker Switch, High Flow

1шт.

36

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 37

1шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 39

1шт.

39

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 41

1шт.

41

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

42

87584569

HOSE

High Flow Valve To Filter

1шт.

43

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

44

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

45

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

46

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 47

2шт.

47

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

48

87516042

HOSE

900mm (35 7/16 in.)

1шт.

49

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 50

1шт.

50

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
