Запчасти Case IH 410 (08-14) - CYLINDER - TILT (87461812) (08) - HYDRAULICS

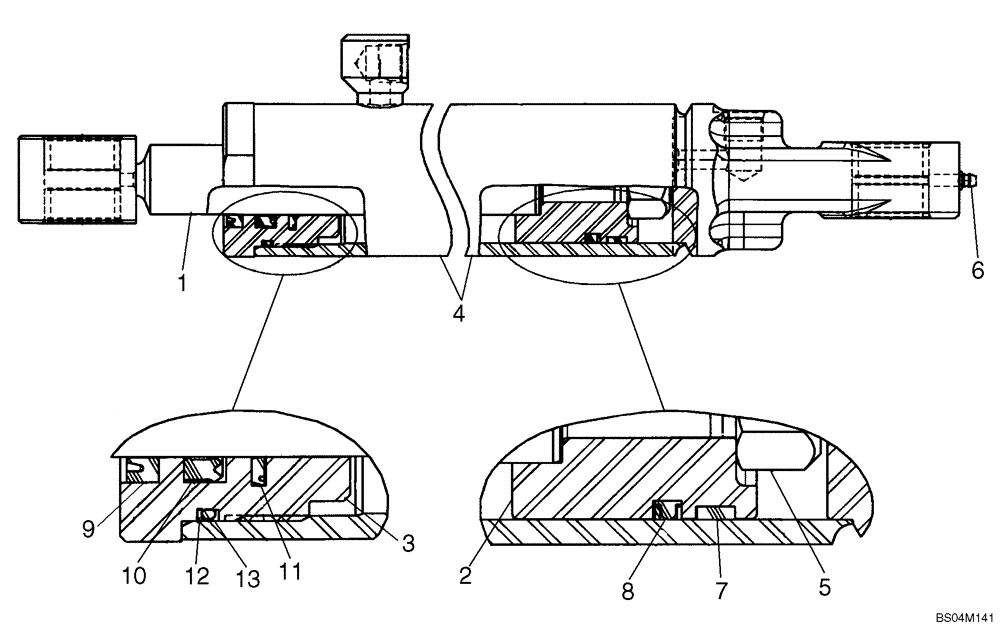

Схема запчастей Case IH 410 - (08-14) - CYLINDER - TILT (87461812) (08) - HYDRAULICS
10
12
11
2
4
13
1
9
7
5
6
8
3

Артикул

Название

Примечание

Количество

87461812

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 369mm Stroke

Tilt; 2.50 Bore, 14.52 Stroke; 1 in Thread On Rod Nut; Incl. 1 - 6 and Seal Kit 86640088 (Ref 7 - 13)

2шт.

87461812R

410 SERIES 3 ASN N7M480924 (1/08-)

REMAN-HYD CYLINDER

2шт.

87461812C

Return Number

CORE-HYD CYLINDER

1шт.

1

87461805

PISTON

Piston, Rod, 1.38; 1 in Thread

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

Incl. (2) 30634 Bushings

2шт.

2

87461804

PISTON

Piston, Decelerator; 1 in Thread

1шт.

3

86640013

CYLINDER END CAP

2.5 x 1.38

1шт.

4

86611745

CYLINDER

Incl. (2) 30634 Bushings

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

5

87301258

NUT,1"-14, GC

1"-14, GC

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

86640088

SEAL KIT

2.5 x 1.38; Incl. 7 - 13

1шт.

7

783874

WEAR RING,Split, 57.15mm ID x 63.5mm OD x 9.53mm Thk

1шт.

8

86563839

SEAL,53.34mm ID x 64.01mm OD x 6.99mm Thk

2.5 Piston

1шт.

9

86631609

WIPER SEAL,33.02mm ID x 47.73mm OD x 7.92mm Thk

1.38 Wiper

1шт.

10

86631606

SEAL,33.27mm ID x 48.84mm OD x 9.53mm Thk

1.38 Rod

1шт.

11

86631615

SEAL,34.54mm ID x 50.6mm OD x 3.12mm Thk

1.38 Buffer

1шт.

12

86512008

SEAL,60.89mm ID x 66.88mm OD x 1.27mm Thk

Backup

1шт.

13

52419

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

Выбрано товаров: 19
