Запчасти Case IH 410 (08-05) - HYDRAULICS - SELF LEVELING (08) - HYDRAULICS

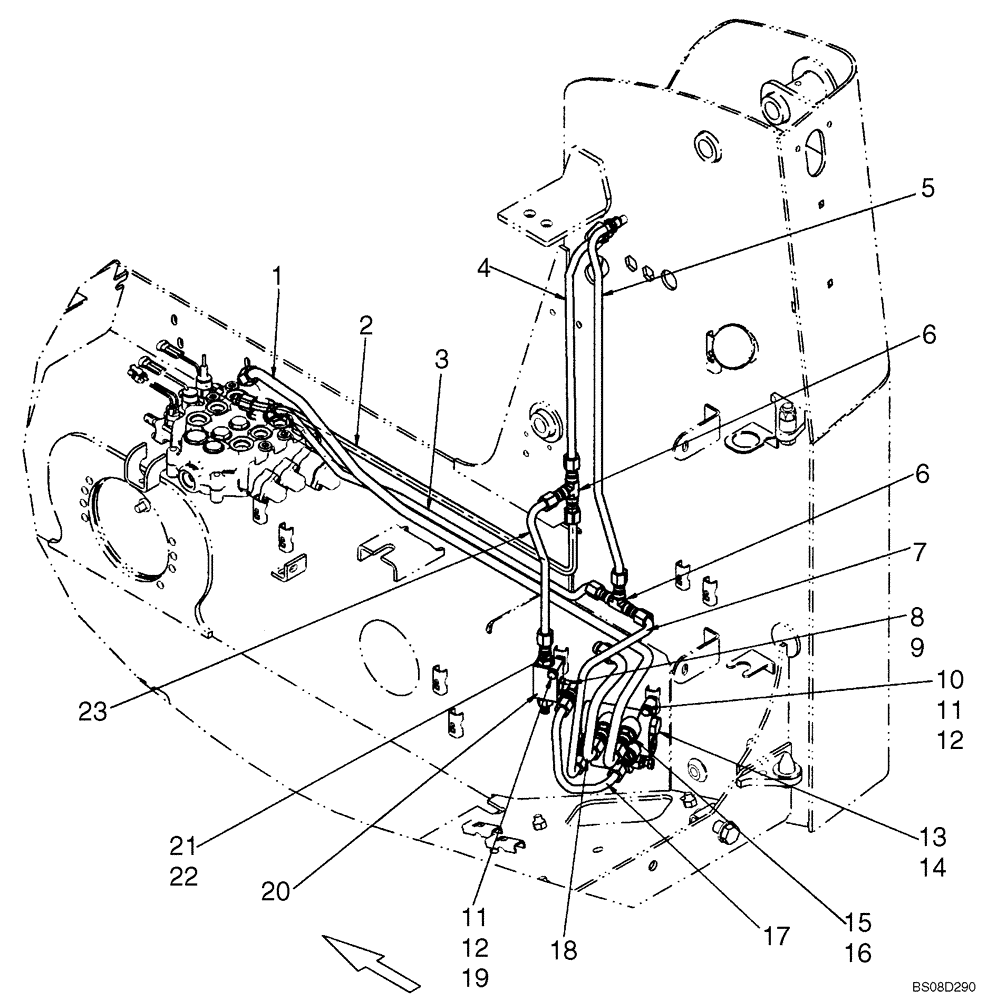

Схема запчастей Case IH 410 - (08-05) - HYDRAULICS - SELF LEVELING (08) - HYDRAULICS
11
7
13
14
4
12
18
2
15
6
17
8
1
11
20
9
22
23
19
16
12
5
21
3
10
6

Артикул

Название

Примечание

Количество

1

87421301

HYD TUBE,15.88 mm OD

Tube, 5/8 Tube, Lift (Lower)

1шт.

2

87436538

HYD TUBE,12.7 mm OD

Tube, 1/2 Tube, Tip (Curl)

1шт.

3

87703502

HYD TUBE

Tube, Tip (Dump)

1шт.

4

87436539

HYD TUBE,12.7 mm OD

Tube, 1/2 Tube, Tip (Curl)

1шт.

5

87421452

HYD TUBE,12.7 mm OD x 674.7, 87 mm L

Tube, 1/2 Tube, Tip (Dump)

1шт.

6

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

7

87421448

HYD TUBE,12.7 mm OD x 216.1, 197.1 mm L

Tube, Valve To Bucket Base

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 9

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

11

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

13

87447793

VALVE

Valve, Self Level; Incl 14

1шт.

14

87535230

ZERO DETANT KIT

VALVE KIT Seal Kit For Self Level Valve

1шт.

15

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 16

2шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

87421454

HYD TUBE,12.7 mm OD x 132, 101.7 mm L

Tube, Self Level To Relief

1шт.

18

87412217

TUBE,15.88 mm OD x 132.5, 120.8 mm L

Tube, Valve Out

1шт.

19

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

20

294650A1

VALVE

Relief Valve

1шт.

21

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 22

3шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

23

87445306

HYD TUBE,12.7 mm OD

Tube, Valve To Bucket Rod

1шт.

Выбрано товаров: 23
