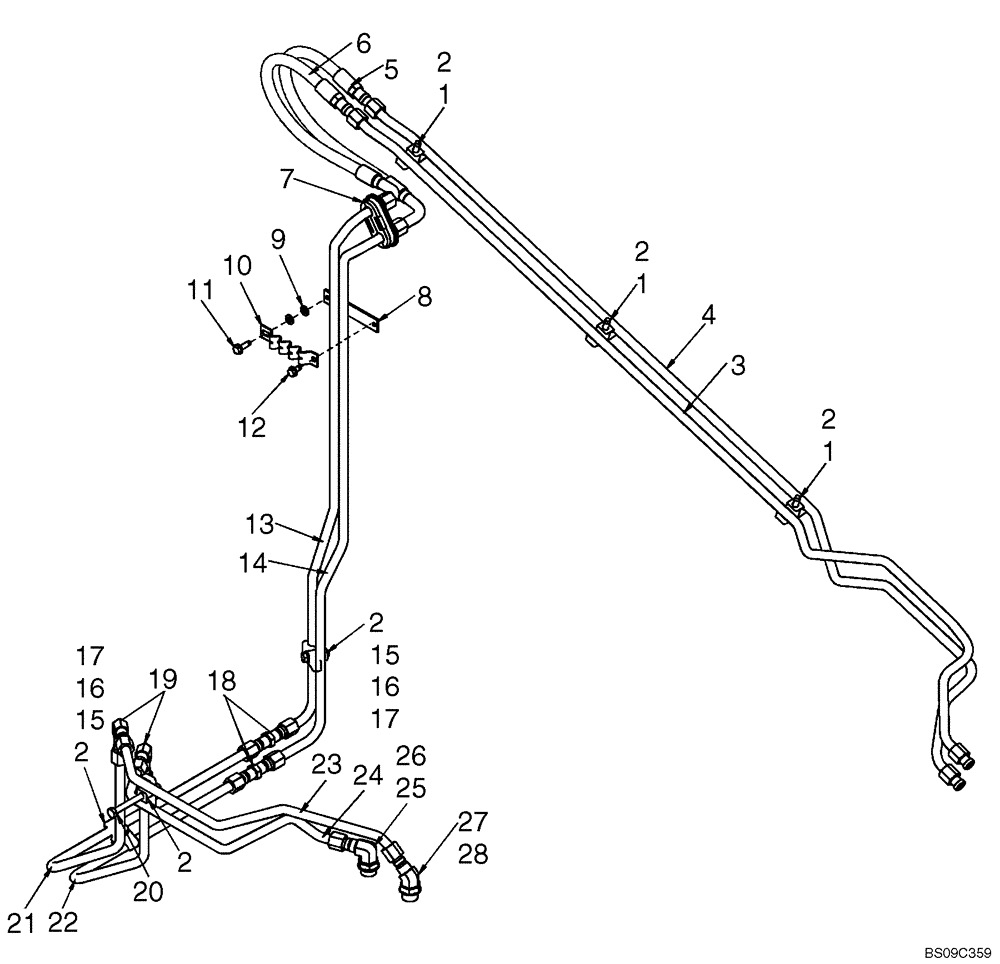

Запчасти Case IH 410 (08-03) - HYDRAULICS - AUXILIARY HIGH FLOW (08) - HYDRAULICS

1

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Hex 3/8 x 1.75

3шт.

2

D120613

CLAMP,20mm ID

5/8 Clamp

6шт.

3

87024311

HYD TUBE,15.90 mm OD

1744.6mm (68.69 in)

1шт.

4

87024310

HYD TUBE,15.90 mm OD

1744.6mm (68.69 in)

1шт.

5

406087A1

HOSE ASSY.

Aux

1шт.

6

406240A1

HOSE ASSY.

Aux

1шт.

7

87018001

SUPPORT

5/8 Tube Support

2шт.

8

406940A1

BAR

Back Clamp

1шт.

9

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

10

406941A1

BAR

Face Clamp

1шт.

11

87029931

SCREW,Hex Washer, 5/16" - 18 x 1"

Hex 5/16 x 1.0

1шт.

12

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

Hex 5/16 x .62

1шт.

13

87436545

HYD TUBE,15.88 mm OD x 1059.1, 194.2 mm L

Aux, 5/8 Tube

1шт.

14

87436544

HYD TUBE,15.88 mm OD x 1030.6, 266.5 mm L

Aux, 5/8 Tube

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Sq M10 - 1.5 Cl 8

2шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

17

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

18

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

37 Fl 5/8 x 5/8

2шт.

19

86512932

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

20

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

21

87436547

HYD TUBE,15.88 mm OD

Aux, 5/8 Tube

1шт.

22

87436546

HYD TUBE,15.88 mm OD

Aux, 5/8 Tube

1шт.

23

87420987

HYD TUBE,15.88 mm OD x 516.3, 426.6 mm L

Aux, 5/8 Tube

1шт.

24

87443801

HYD TUBE,15.88 mm OD

Aux, 5/8 Tube

1шт.

25

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 26

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 28

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
