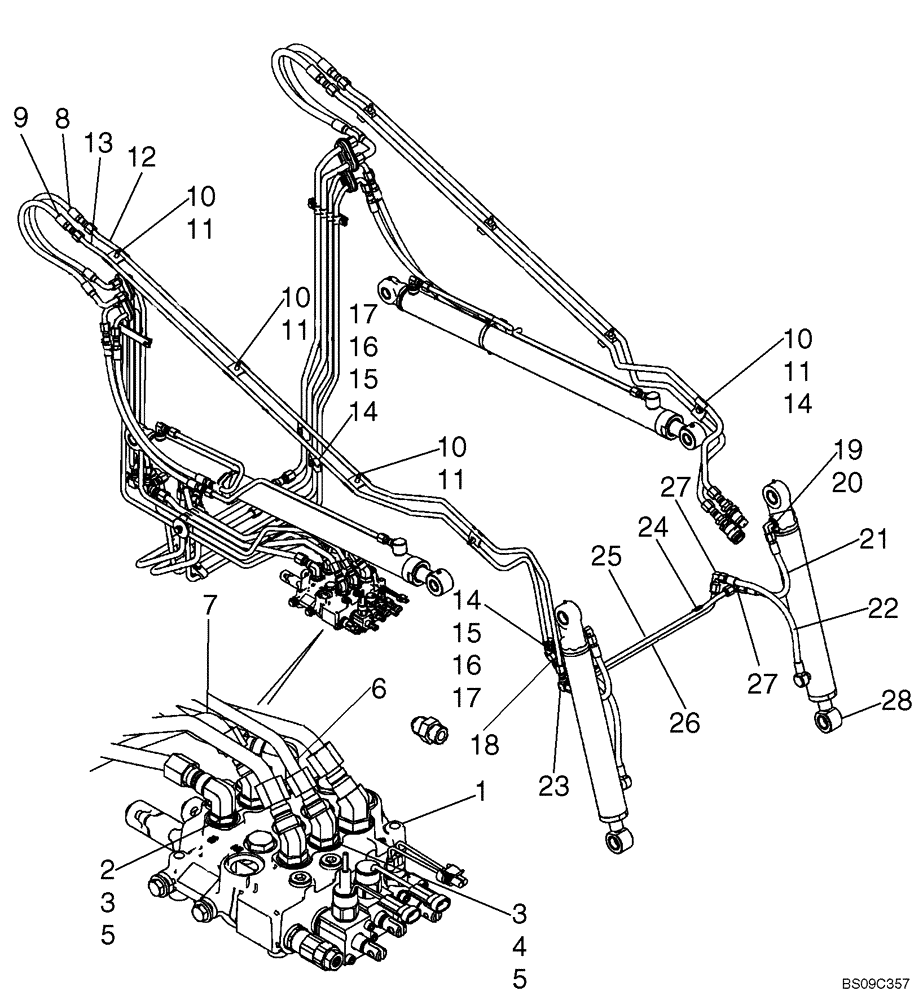

Запчасти Case IH 410 (08-02) - HYDRAULICS - TILT (08) - HYDRAULICS

1

87583285

VALVE

Control Valve; See Fig 08-19

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl. 3; If Used

1шт.

2

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

Incl 5

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 5; If Used

1шт.

4

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

Incl 5

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87420991

HYD TUBE,12.7 mm OD x 723.6, 586.1 mm L

1/2 Tube, Curl; If Used

1шт.

6

87705044

TUBE,12.7 mm OD

Curl Tip Tube

1шт.

7

87420981

HYD TUBE,12.07 mm OD x 706.4, 666.4 mm L

1/2 Tube, Dump; If Used

1шт.

7

87702638

TUBE,12.7 mm OD

Dump Tip Tube

1шт.

8

406242A1

HOSE ASSY.,9.53mm ID x 580mm L

580 mm (22.83 in)

1шт.

9

406088A1

HOSE ASSY.,9.53mm ID x 600mm L

600 mm (23.62 in)

1шт.

10

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

5шт.

11

86501706

CLAMP

Double

5шт.

12

406080A1

TUBE

1/2 Tube, Dump

1шт.

12

87531089

HYD TUBE,9.4 mm ID x 12.7 mm OD x 1858, 329 mm L

1/2 Tube, Dump

1шт.

13

406082A1

TUBE

1/2 Tube, Curl

1шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 -1.5

2шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

17

D120679

CLAMP,Tube, 1/2"

1/2 in

2шт.

18

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

19

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 20

2шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

87387193

HOSE ASSY.,9.53mm ID x 355mm L

Hose Assy; 355 mm, 14 in; Dump

2шт.

22

373241A3

HOSE ASSY.,9.53mm ID x 460mm L

Curl

2шт.

23

D124661

ELBOW

Side Outlet

1шт.

24

H434900

CLAMP

2шт.

25

373223A3

TUBE,610, 31 mm Length

Dump

1шт.

26

373225A3

TUBE,584, 50 mm Length

Curl

1шт.

27

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

28

87461812

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 369mm Stroke

Tilt; 2-1/2 x 14-1/2, 14.52 str; 1 in thread on Rod Nut; See Figure 08-14

2шт.

87461812R

410 SERIES 3 ASN N7M480924 (1/08-)

REMAN-HYD CYLINDER

2шт.

87461812C

Return Number

CORE-HYD CYLINDER

1шт.
