Запчасти Case IH 410 (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

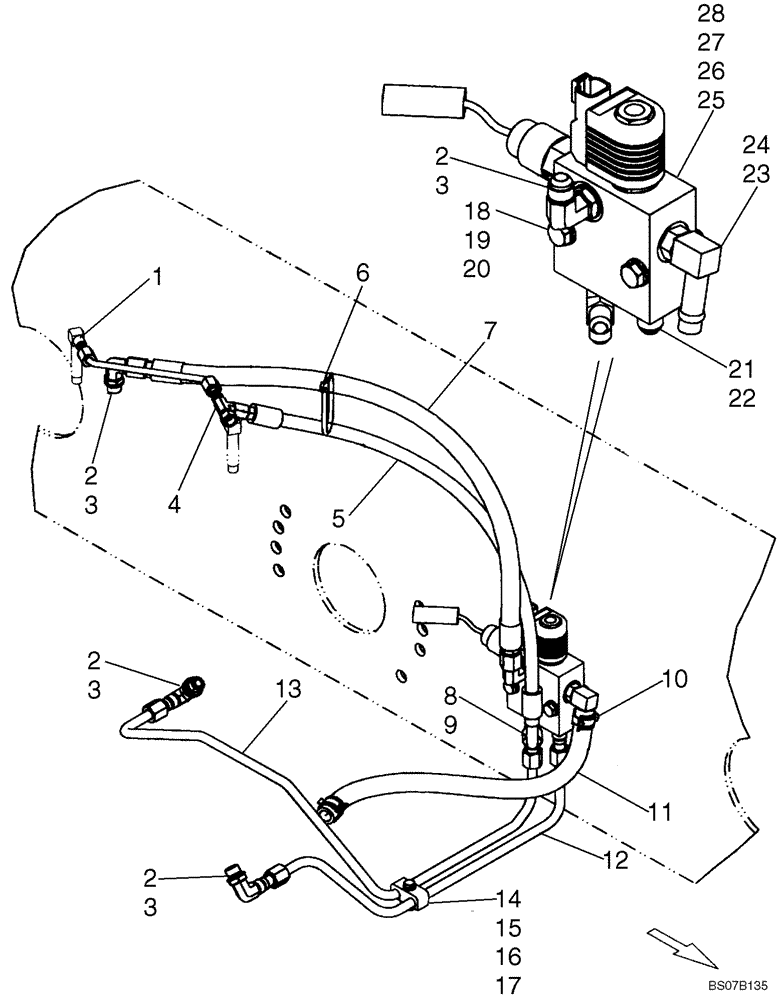

Схема запчастей Case IH 410 - (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES
3
20
1
22
9
2
2
2
28
3
8
18
2
21
3
10
27
23
14
3
5
13
15
19
12
11
6
26
25
4
16
17
7
24

Артикул

Название

Примечание

Количество

1

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3; To Charge Port on Tandem Pump

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

5

87441276

HOSE ASSY.

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

7

87459910

HOSE ASSY.

1шт.

8

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl. 9

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

11

87015463

HOSE,12.7mm ID x 402mm L

Drain

1шт.

12

87443651

HYD TUBE,9.53 mm OD

1шт.

13

87443747

HYD TUBE,9.53 mm OD

1шт.

14

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

1шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

16

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

1шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

20

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

21

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl. 24

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

87021047

BRAKE VALVE

Valve Assy; Incl. 26 - 28

1шт.

26

87424182

BRAKE VALVE

Solenoid

1шт.

27

87433496

COIL

1шт.

28

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

Выбрано товаров: 28
