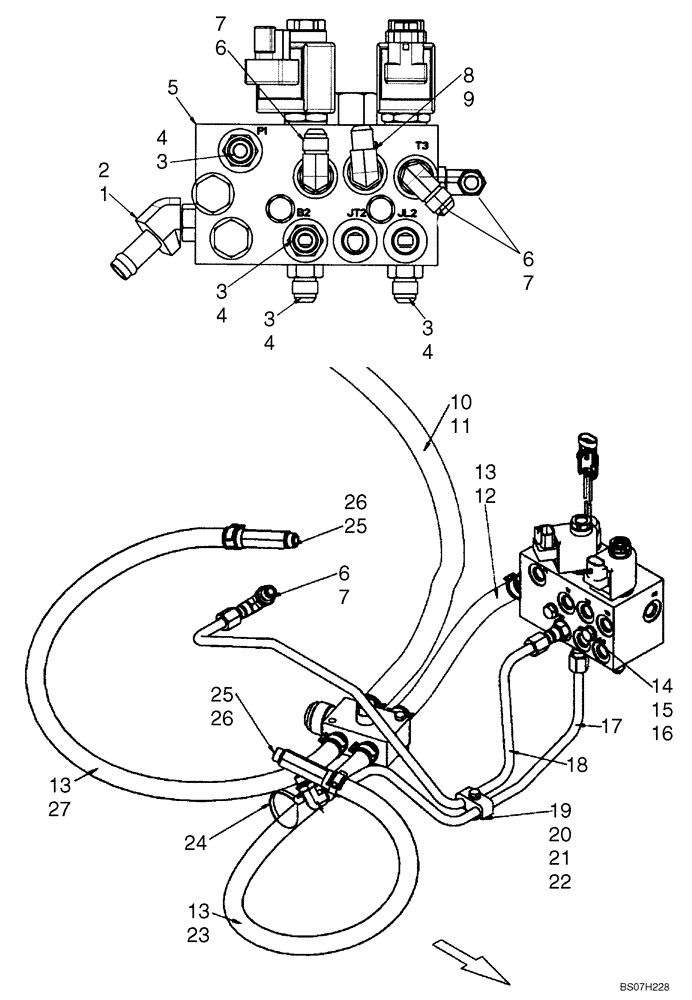

Запчасти Case IH 410 (06-16) - HYDROSTATICS - MOTOR BRAKE AND CASE DRAIN (PILOT CONTROL) (06) - POWER TRAIN

1

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 2

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 4

4шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

5

87546971

HYDRAULIC VALVE

Valve, Pilot Brake; See Fig. 06-32; If Used

1шт.

5

87756435

HYDRAULIC VALVE

Valve, Pilot Brake; See Fig. 06-32

1шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 7

4шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

8

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 9

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

87653840

HOSE

Case Drain, 650mm (25 9/16 in.)

1шт.

11

9706921

HOSE CLAMP,12.7mm - 35mm

Replaces 87443511

2шт.

12

87653854

HOSE

Hose, 255mm (10 in.)

1шт.

13

9706921

HOSE CLAMP,12.7mm - 35mm

Replaces 87443510

6шт.

14

395851

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8, Full Thd

2шт.

15

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

16

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

5шт.

17

87653867

HYD TUBE,9.53 mm OD

Tube, Brake

1шт.

18

87653864

HYD TUBE,9.53 mm OD

Tube, Brake

1шт.

19

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

1шт.

20

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

21

87404992

SQUARE NUT,M6 x 1.0, Cl 8

3шт.

22

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

87016336

HOSE,12.70 mm ID x 750.00 mm

Case Drain

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

25

87450562

HYD CONNECTOR

Incl 26

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

27

87016337

HOSE,12.70 mm ID x 805.00 mm

Case Drain

1шт.
