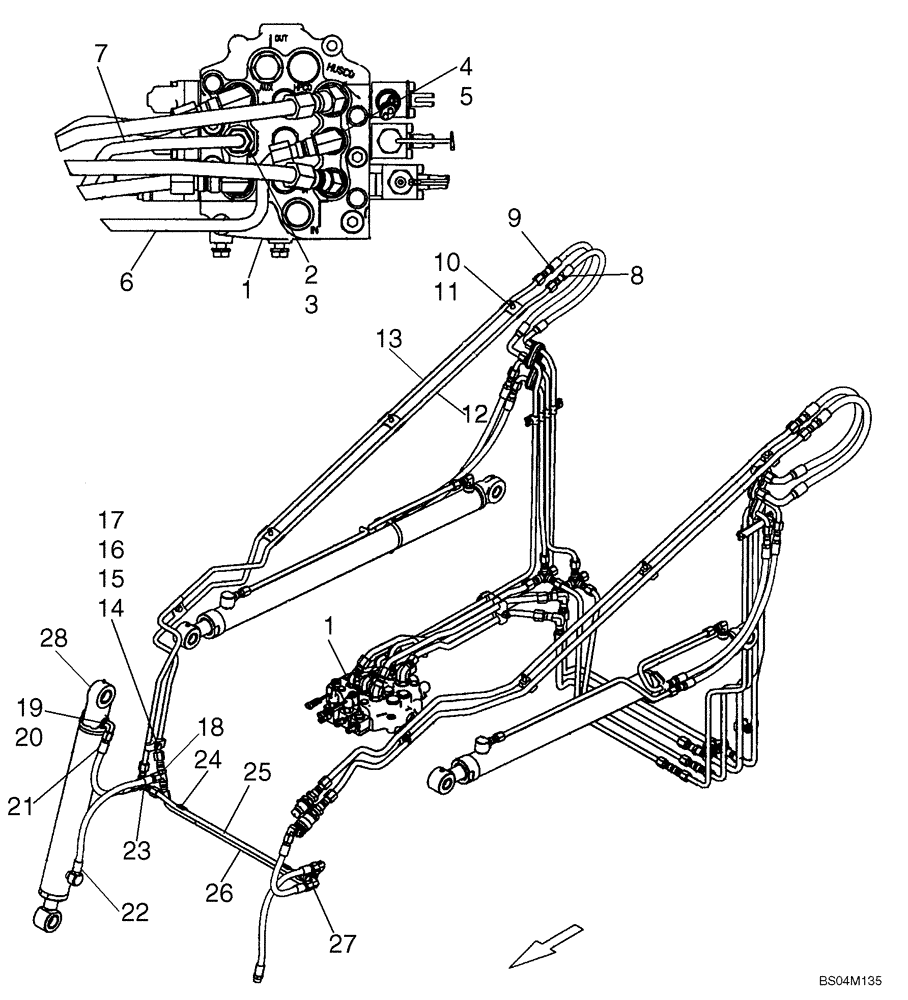

Запчасти Case IH 410 (08-02) - HYDRAULICS - TILT (08) - HYDRAULICS

1

87446760

CONTROL VALVE

3000 PSI; See Figure 08-09

1шт.

1

87635384R

410 SKID STEER, NA BSN N7M480924, TILT, 3000 PSI (2/05-), Reman for New PN 87446760

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available

1шт.

1

87635384R

410 SKID STEER, NA BSN N7M480924, TILT (2/05-), Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl. 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 5

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87420991

HYD TUBE,12.7 mm OD x 723.6, 586.1 mm L

1/2 Tube, Curl

1шт.

7

87420981

HYD TUBE,12.07 mm OD x 706.4, 666.4 mm L

1/2 Tube, Dump

1шт.

8

406242A1

HOSE ASSY.,9.53mm ID x 580mm L

580 mm (22.83 in)

1шт.

9

406088A1

HOSE ASSY.,9.53mm ID x 600mm L

600 mm (23.62 in)

1шт.

10

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

Replaces 281-54914 (Hex Washer Head, 3/8 x 7/8)

4шт.

11

86501706

CLAMP

Double

4шт.

12

406080A1

TUBE

1/2 Tube, Dump; No Longer Used, Order 87531089

1шт.

12

87531089

HYD TUBE,9.4 mm ID x 12.7 mm OD x 1858, 329 mm L

1/2 Tube, Dump

1шт.

13

406082A1

TUBE

1/2 Tube, Curl

1шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 -1.5

1шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

17

D120679

CLAMP,Tube, 1/2"

1/2 in

1шт.

18

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

19

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 20

2шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

373240A5

HOSE ASSY.

Dump

2шт.

22

373241A3

HOSE ASSY.,9.53mm ID x 460mm L

Curl

2шт.

21

87387193

HOSE ASSY.,9.53mm ID x 355mm L

Hose Assy; 355 mm, 14 in; Dump; Replaces 373240A5

2шт.

23

D124661

ELBOW

Side Outlet

1шт.

24

H434900

CLAMP

2шт.

25

373223A3

TUBE,610, 31 mm Length

Dump

1шт.

26

373225A3

TUBE,584, 50 mm Length

Curl

1шт.

27

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

28

87438183

CYLINDER ASSY.

Tilt; 2-1/2 x 14-1/2, 14.52 str; 7/8 in thread on Rod Nut; See Figure 08-12; If Used

2шт.

87461812R

410 BSN N7M480924 (2/05-) Reman for new P/N 87438183

REMAN-HYD CYLINDER

2шт.

87461812C

Return Number

CORE-HYD CYLINDER

1шт.

28

87461812

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 369mm Stroke

Tilt; 2-1/2 x 14-1/2, 14.52 str; 1 in thread on Rod Nut; See Figure 08-12A; If Used

2шт.

87461812R

410 BSN N7M480924 (2/05-)

REMAN-HYD CYLINDER

2шт.

87461812C

Return Number

CORE-HYD CYLINDER

1шт.
