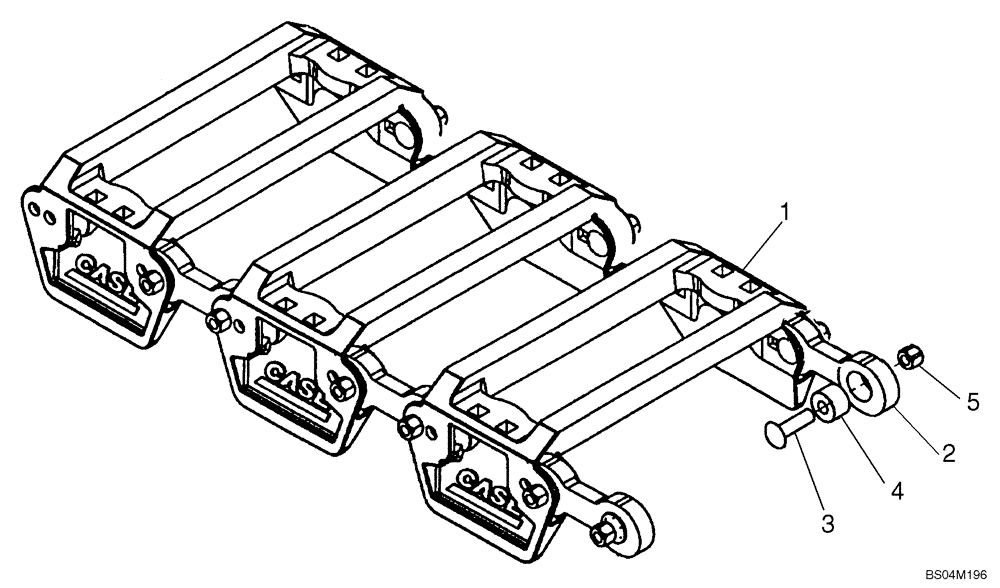

Запчасти Case IH 410 (06-21) - TRACK - STEEL (06) - POWER TRAIN

REF

INSTRUCTION

USED WITH 10 x 16.5 INCH TIRE

1шт.

445691A1

TRACK ASSY

Incl. 1 - 5; Order Components

2шт.

1

365934A1

PAD

Steel Casting

18шт.

2

365261A1

LINK

Connector

36шт.

3

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

72шт.

4

365260A1

BUSHING

72шт.

5

231-4138

LOCK NUT,1/2"-13, GB

72шт.
