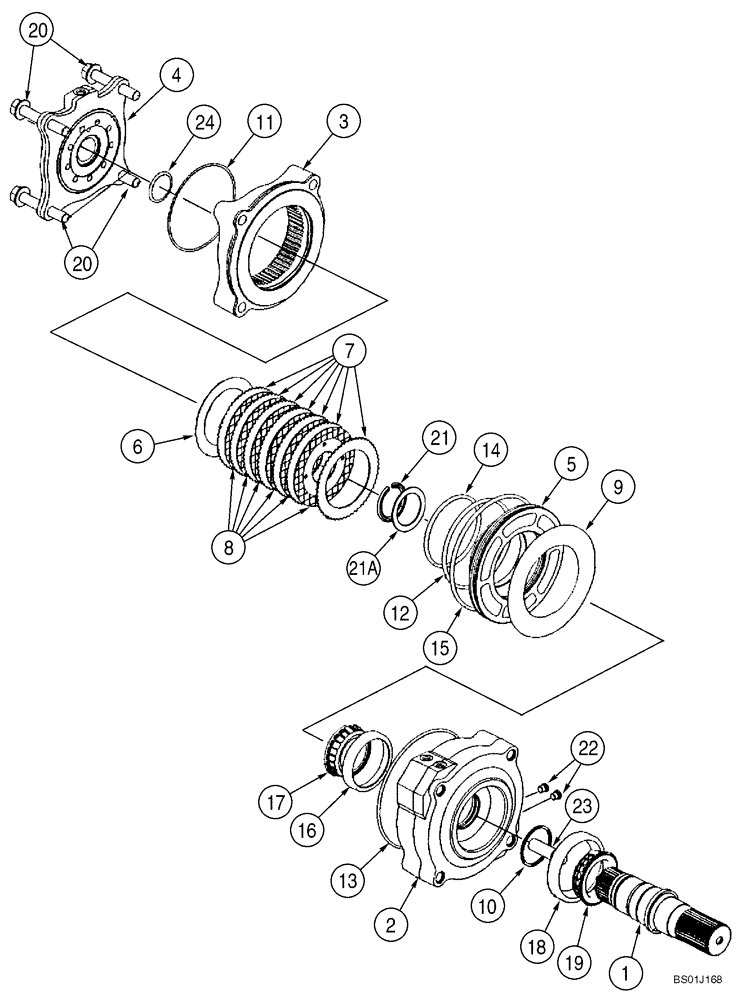

Запчасти Case IH 410 (06-17A) - MOTOR ASSY, BRAKE - EATON (06) - POWER TRAIN

394539A2

MOTOR, HYDRAULIC

Eaton; Incl. 06-17, 17A

1шт.

442748A2

BRAKE ASSY.

Incl. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Sprocket

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Friction

1шт.

4

NSS

NOT SOLD SEPARAT

Flange, Motor

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

401268A1

KIT

Incl. 6, 7, 8

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Stator

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Stator

6шт.

8

NSS

NOT SOLD SEPARAT

Lining, Brake

6шт.

9

NSS

NOT SOLD SEPARAT

Disc, Brake, Spring

1шт.

401267A1

SEAL KIT

Seal; Incl. 10 - 15, 21, 24

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Quad Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

442749A1

BEARING ASSY

Bearing; Incl. 6, 16 - 19, 21, 21A

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

17

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

18

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

20

NSS

NOT SOLD SEPARAT

Bolt

1шт.

21

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

21a

NSS

NOT SOLD SEPARAT

Shim; Not Illustrated

1шт.

22

NSS

NOT SOLD SEPARAT

Plug; Port End

4шт.

23

NSS

NOT SOLD SEPARAT

Plug; Shaft

1шт.

24

NSS

NOT SOLD SEPARAT

Seal; 5/8 x 2; Shaft End

4шт.
