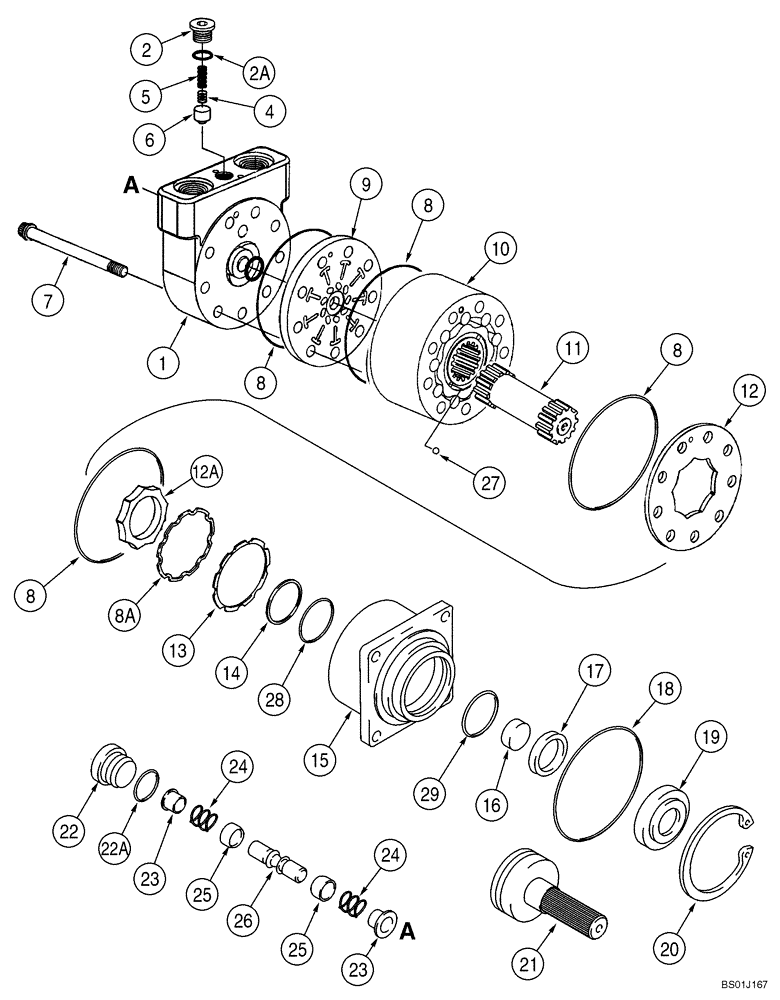

Запчасти Case IH 410 (06-17) - MOTOR ASSY - EATON (06) - POWER TRAIN

394539A2

MOTOR, HYDRAULIC

Eaton; Incl. 06-17, 17A; If Used

2шт.

442747A2

MOTOR, HYDRAULIC

Incl. 1 - 29

1шт.

87457450

MOTOR, HYDRAULIC

HYDRAULIC MOTOR

1шт.

87457450R

REMAN-HYD MOTOR

1шт.

87457450C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

1

87413036

CAP

1шт.

2

282787A1

PLUG

Incl. 2A

1шт.

2a

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

4

282788A1

SHIM

1шт.

5

282789A1

SPRING

1шт.

6

438416A1

VALVE POPPET

1шт.

7

438431A1

12 PT SCREW

9шт.

8

NSS

NOT SOLD SEPARAT

Seal

4шт.

8a

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

438425A1

PLATE

Valve

1шт.

10

438426A1

GEAR-SET

1шт.

11

442750A1

DRIVE

1шт.

12

438427A1

PLATE

Thrust; Outer

1шт.

12a

438428A1

PLATE

Thrust; Inner

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

442751A1

BACK-UP RING

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Bearing

1шт.

16

NSS

NOT SOLD SEPARAT

Spacer

1шт.

17

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

18

238-5433

O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro

O-Ring

1шт.

Not Included in Seal Kits.

1шт.

19

NSS

NOT SOLD SEPARAT

Retainer

1шт.

20

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

21

NSS

NOT SOLD SEPARAT

Shaft

1шт.

22

282804A1

PLUG

Incl. 22A

1шт.

22a

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

438417A1

SLEEVE

2шт.

24

251506A1

SPRING

2шт.

25

251511A1

VALVE POPPET

2шт.

26

365475A1

PISTON ASSY.

1шт.

27

140784A1

BALL

2шт.

28

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

87413039

SPRING

Bellville Washer; Not Illustrated Separately

1шт.

442748A2

BRAKE ASSY.

Carlisle; Before Date Code 276-06, 03OCT06; See Figure 06-17

1шт.

87598678

BRAKE

Carlisle; On and After Date Code 276-06, 03OCT06; See Figure 06-17B

1шт.

87413001

KIT

Incl. 2A, 3, 8, 13, 22A, 28, 29

1шт.
