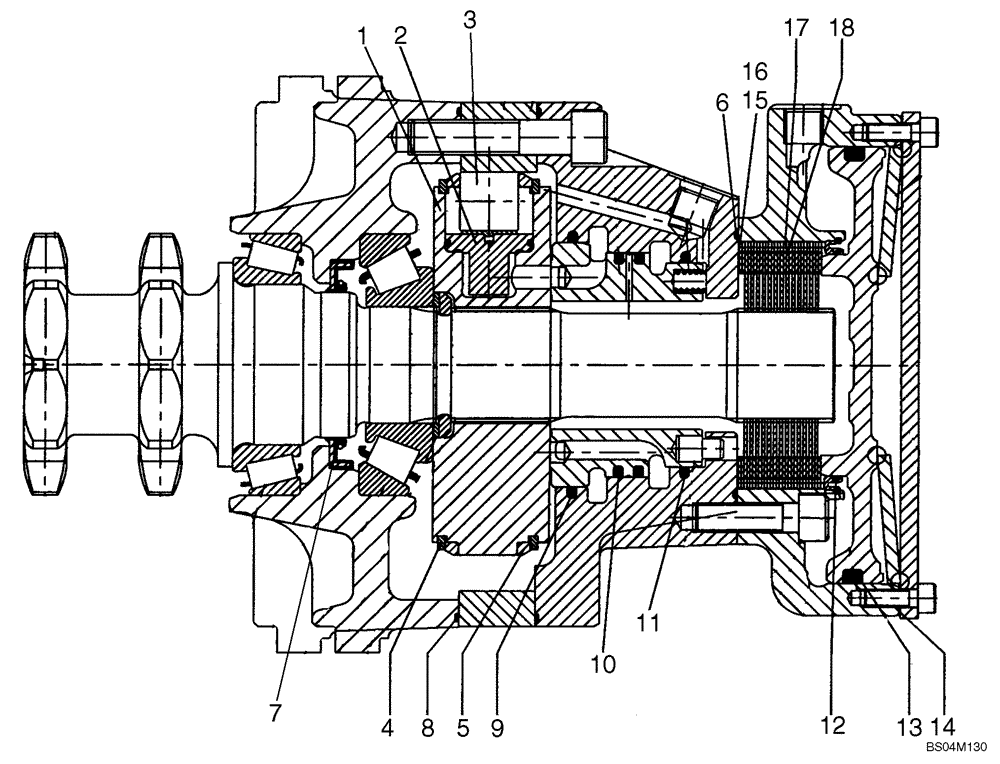

Запчасти Case IH 410 (06-16B) - MOTOR ASSY - REXROTH (06) - POWER TRAIN

87035450

MOTOR,400CC

One Speed; Incl. 06-16 - 06-16C

2шт.

87035450R

410 SSL BSN N7M480924

REMAN-HYD MOTOR,470CC

2шт.

87035450C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

87039378

KIT

Rotation; Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Block

1шт.

2

NSS

NOT SOLD SEPARAT

Piston S/A

8шт.

3

NSS

NOT SOLD SEPARAT

Roller

8шт.

4

NSS

NOT SOLD SEPARAT

Circlip, 120 Dia

2шт.

5

NSS

NOT SOLD SEPARAT

Retaining Ring

2шт.

87039376

SEAL KIT

Seal; Incl. Ref 6 - 14 and Figure 06-16A, Ref 1, 15

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, 88.1 x 1.68

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft Seal, 50

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, 171.5 x 1.68

1шт.

9

NSS

NOT SOLD SEPARAT

Rod Seal, 84

1шт.

10

NSS

NOT SOLD SEPARAT

Piston Seal, 77.225

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal, 70

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, 75.92 x 1.78

1шт.

13

NSS

NOT SOLD SEPARAT

Square Ring, 139.07 x 5.16

16шт.

14

NSS

NOT SOLD SEPARAT

Gasket

1шт.

87039373

KIT

Brake; Incl. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Shim, 80 x 63 x 0.1

1шт.

16

NSS

NOT SOLD SEPARAT

Shim, 80 x 63 x 0.3

1шт.

17

NSS

NOT SOLD SEPARAT

Outer Plate

1шт.

18

NSS

NOT SOLD SEPARAT

Inner Plate

1шт.
