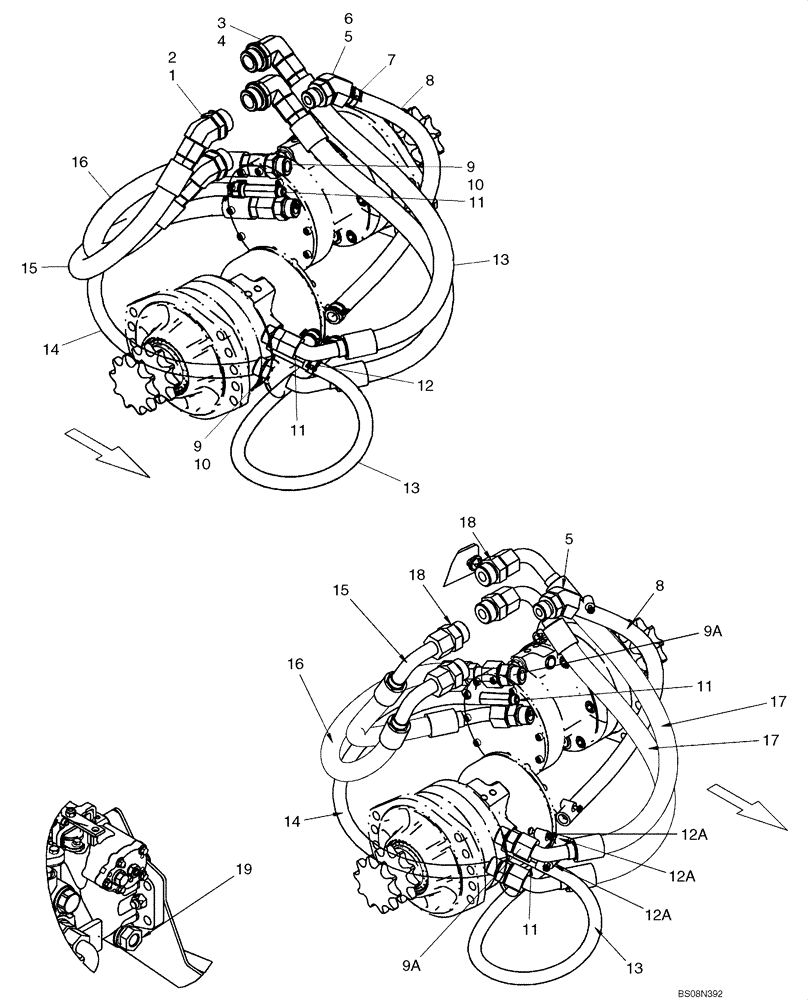

Запчасти Case IH 410 (06-05) - HYDROSTATICS - DRIVE MOTORS (06) - POWER TRAIN

87035450

MOTOR,400CC

Rexroth; If Used; One Speed; Incl. 06-16 - 06-16B

2шт.

87035450R

REMAN-HYD MOTOR,470CC

2шт.

87035450C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

394539A2

MOTOR, HYDRAULIC

Eaton; See Figure 06-17, 17A

2шт.

87457450

MOTOR, HYDRAULIC

HYDRAULIC MOTOR

2шт.

87457450R

REMAN-HYD MOTOR

2шт.

87457450C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

1

22907

ELBOW,0.50" ID x 175.00", SAE J517, SAE J516, SAE J846, SAE J1273

Incl. 2; If Used

2шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

If Used

1шт.

3

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 4; If Used

2шт.

4

305412

O-RING 1-11/64 ID x 7/64; If used

2шт.

5

87021779

FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded

Stem; Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm; If Used

2шт.

8

87016334

HOSE,15.88mm ID x 535mm L

Case Drain

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 2A; If Used

4шт.

9a

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube; If Used

4шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87450562

HYD CONNECTOR

6 ORB x 8 Bead (Long)

2шт.

12

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

If Used

4шт.

12a

9706921

HOSE CLAMP,12.7mm - 35mm

If Used

6шт.

13

87016336

HOSE,12.70 mm ID x 750.00 mm

Case Drain, No Fittings Included

1шт.

14

87016337

HOSE,12.70 mm ID x 805.00 mm

Case Drain

1шт.

15

87443853

HOSE ASSY.

Loop, 900 mm (35.43 in); If Used

1шт.

15

87735215

HOSE

Loop, 610 mm (24.02 in); If Used

1шт.

16

87443852

HOSE ASSY.

Loop, 760 mm (29.92 in); If Used

1шт.

16

87735216

HOSE

Loop, 735 mm (28.94 in); If Used

1шт.

17

87458879

HOSE ASSY.

Loop, 690 mm (27.17 in); If Used

2шт.

17

87735218

HOSE

Loop, 720 mm (28.35 in); If Used

2шт.

18

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

STR -12 ORFS X 1-5/16-12 ORB

4шт.

19

87033027

ADAPTER

Adapter -12 SAE TO 1/2 NPTF

1шт.
