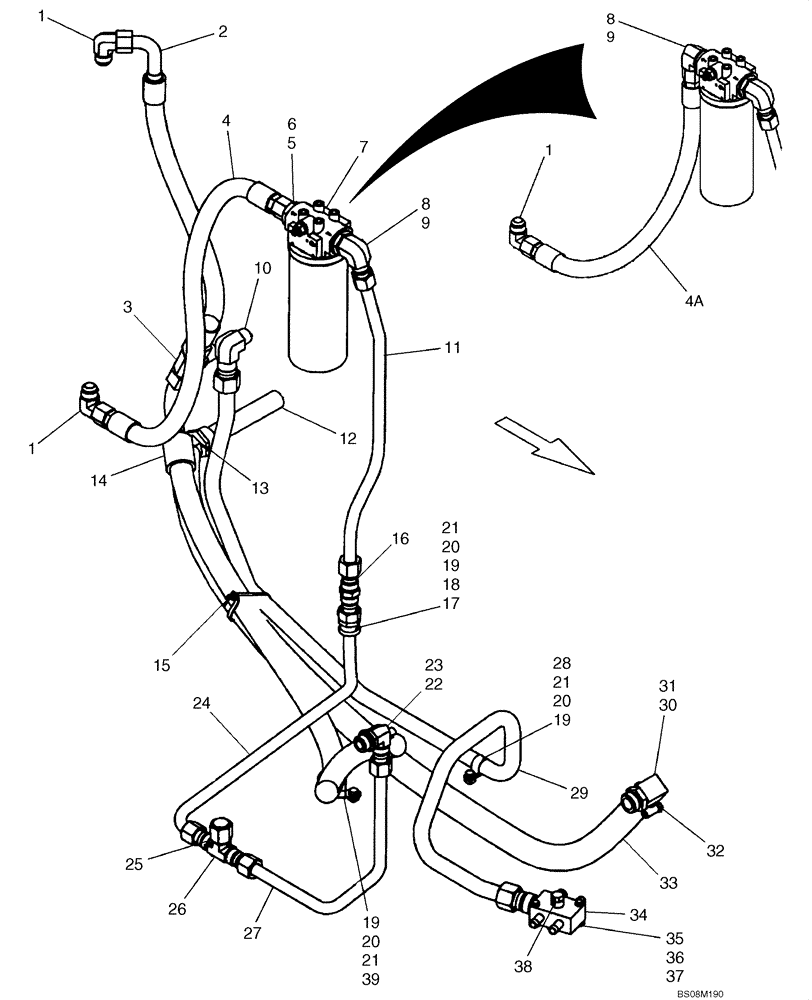

Запчасти Case IH 410 (06-04) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

2

87453235

HOSE ASSY.

Oil Cooler

1шт.

3

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

NPTF Br

1шт.

4

87441650

HOSE ASSY.

Oil Cooler; 810 mm (31.89 in); If Used

1шт.

4

87446945

HOSE ASSY.

Oil Cooler; 700 mm (27.56 in); If Used

1шт.

4a

87641914

HOSE

Oil Cooler Hose; 800 mm (31.5 in); If Used

1шт.

5

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl. 6; If Used

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

87430661

FILTER

Hydrostatic Filter; For Mounting, See Figure 06-06

1шт.

8

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 9

2-4шт.

9

305412

O-RING 1-11/64 ID x 7/64

2шт.

10

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

11

87445139

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

12

H151399

FILTER STRAINER

Suction Line

1шт.

13

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1.25 ID x 1

1шт.

14

87441487

HOSE ASSY.

Suction

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

16

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

17

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

3/4

1шт.

18

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

Clamp; 28.6 mm 3/8 Bolt

1шт.

19

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

21

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

3шт.

22

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 23

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

87445138

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

25

219606

CAP,1-1/16" - 12 JIC

1шт.

26

15694

TEE,1 1/16"-12 37 Degree

1шт.

27

87445137

HYD TUBE,19.05 mm OD x 306.7, 187.6 mm L

Valve Out To Filter

1шт.

28

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

(25.4 mm; M8 Bolt)

1шт.

29

87458880

HYD TUBE,25.4 mm OD

Case Drain

1шт.

30

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl. Ref 31

1шт.

31

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

87039085

HOSE CLAMP,32mm - 54mm

2 in

2шт.

33

87022438

HOSE,12.7mm ID x 1610mm L, SAE 100R4

Suction

1шт.

34

87437351

MANIFOLD

1шт.

35

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

36

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

2шт.

37

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

38

76349

PLUG,9/16" - 18 ORB

3/8

1шт.

39

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

44.4 mm 3/8 in Bolt

1шт.
