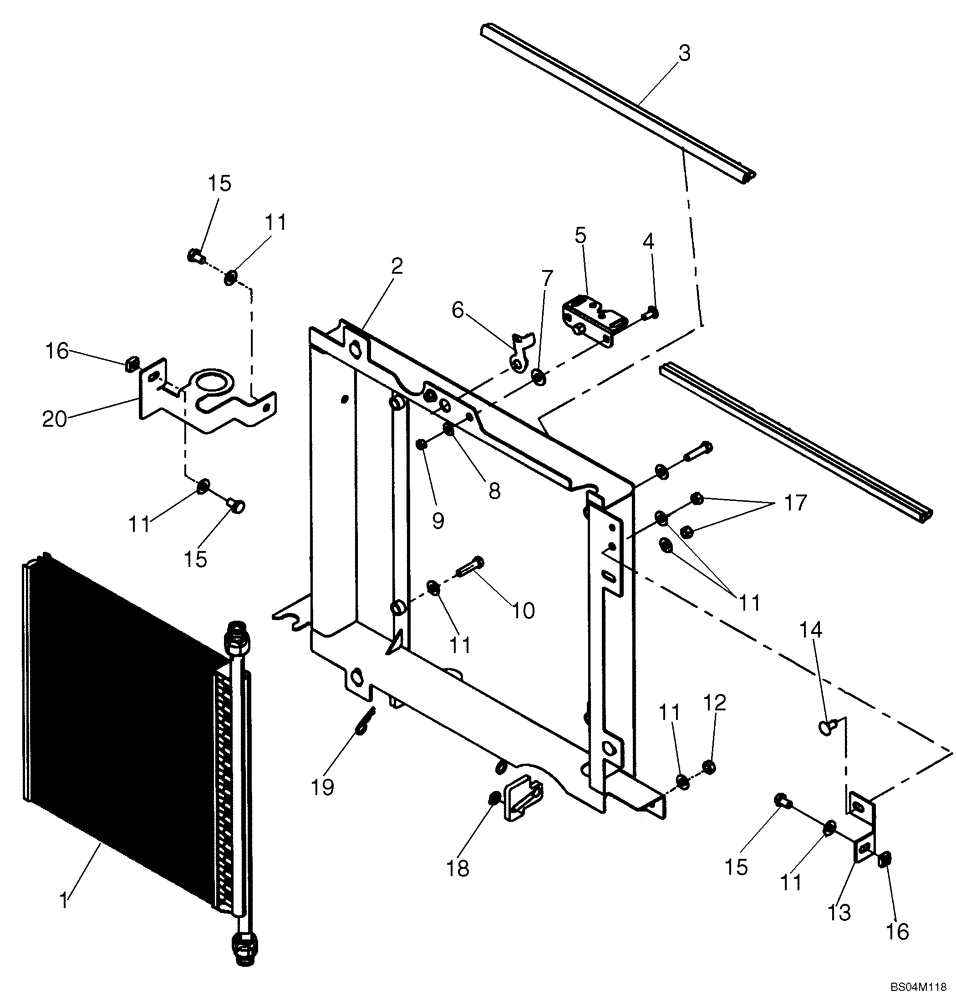

Запчасти Case IH 410 (06-01) - OIL COOLER - MOUNTING (06) - POWER TRAIN

1

87050342

OIL COOLER

1шт.

2

87047291

SUPPORT

Oil Cooler

1шт.

2

87530721

SUPPORT

Oil Cooler; Replaces 87047291

1шт.

3

87016847

SEAL

2шт.

4

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

5

84015292

LATCH

If Used

1шт.

5

87705306

LATCH

If Used

1шт.

6

87017116

LEVER

1шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

If Used

14шт.

12

86500689

NUT,M10 x 1.5, Cl 10

2шт.

13

87047296

BRACKET

Oil Cooler

1шт.

13

87356893

BRACKET

Oil Cooler Support; Replaces 87047296

1шт.

14

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

15

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

3шт.

16

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

2шт.

17

9628503

NUT,3/8"-16, G5

4шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

19

216698

COTTER PIN,0.125" OD x 1.75" L

If Used

2шт.

20

87047292

ANGLE

1шт.
