(04-22) - SPECIAL PARTS FOR ITALY - BRAKE LIGHT HARNESS

Запчасти Case IH 410 (04-22) - SPECIAL PARTS FOR ITALY - BRAKE LIGHT HARNESS (04) - ELECTRICAL SYSTEMS

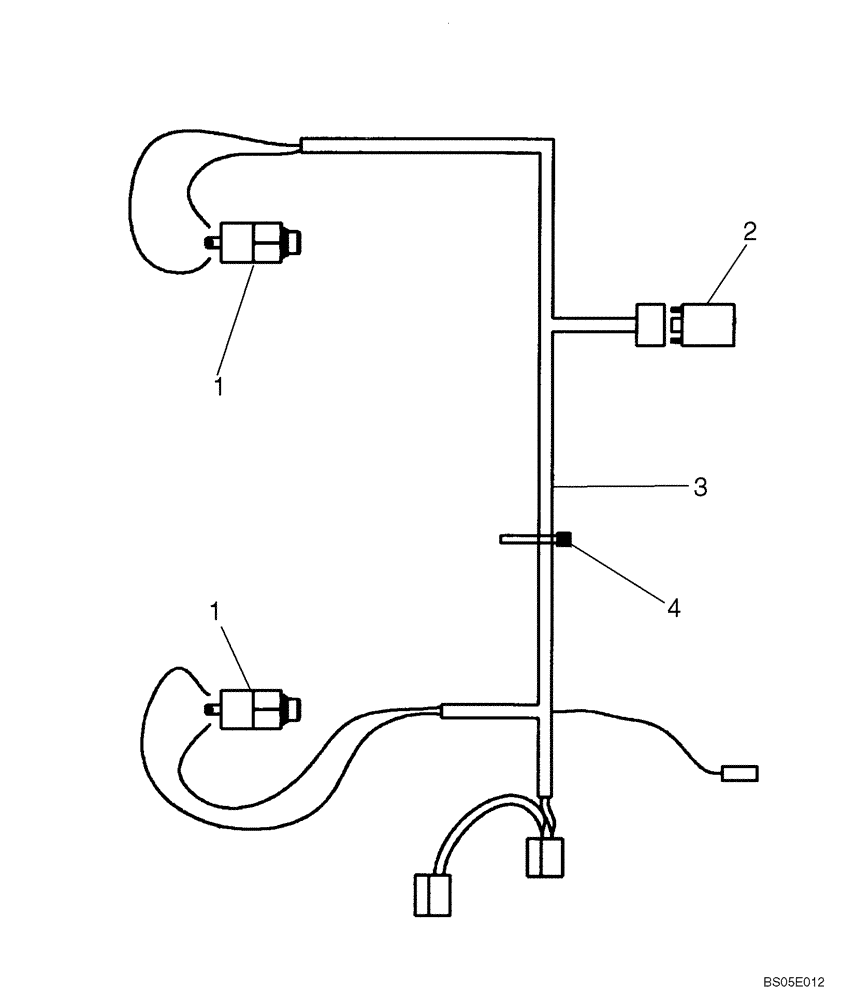

Схема запчастей Case IH 410 - (04-22) - SPECIAL PARTS FOR ITALY - BRAKE LIGHT HARNESS (04) - ELECTRICAL SYSTEMS
3
2
1
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87047034

PRESSURE SWITCH

Pressure Switch; Incl. O-ring 167269

2шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

2

388457A1

RELAY

Time Delayed

1шт.

3

87057451

WIRE HARNESS

Brake Light

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.
