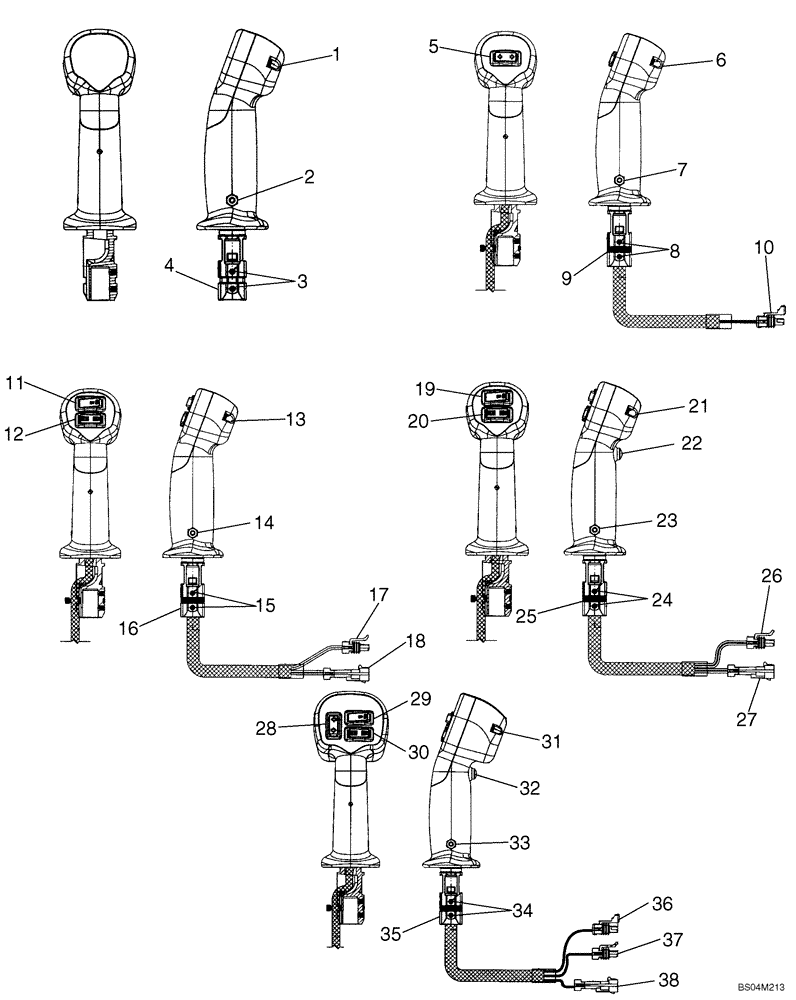

Запчасти Case IH 410 (04-13) - CONTROLS, LEFT HAND - HANDLE; IF USED, SEE ADAPTER, REF 4 (04) - ELECTRICAL SYSTEMS

87458322

HANDLE

WITHOUT SWITCHES; Incl. 1 - 4

1шт.

1

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

2

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

3

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

4

87456565

ADAPTER

Mount

1шт.

87458328

HANDLE

WITH TURN SIGNAL SWITCH; Incl. 5 - 10

1шт.

5

87427353

SWITCH

Turn Signal

1шт.

6

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

7

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

8

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

9

87456565

ADAPTER

Mount

1шт.

10

256344A1

CONNECTOR, ELEC

CONNECTOR

1шт.

87458326

HANDLE

WITH HYDRAULIC ATTACHMENT; Incl. 11 - 18

1шт.

11

87458601

SWITCH

Hydraulic Attachment On-Off

1шт.

12

87440121

SWITCH

Hydraulic Attachment

1шт.

13

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

14

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

15

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

16

87456565

ADAPTER

Mount

1шт.

17

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

18

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

87458327

HANDLE

WITH HYDRAULIC ATTACHMENT, TWO SPEED SWITCH; Incl. 19 - 27

1шт.

19

87458601

SWITCH

Hydraulic Attachment On-Off

1шт.

20

87440121

SWITCH

Hydraulic Attachment

1шт.

21

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

22

87427352

SWITCH

Trigger, On- Off

1шт.

23

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

24

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

25

87456565

ADAPTER

Mount

1шт.

26

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

27

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

87458329

HANDLE

HANDLE WITH HYDRAULIC ATTACHMENT, TURN SIGNAL, TWO SPEED SWITCH; Incl. 29 - 38

1шт.

28

87427353

SWITCH

Turn Signal

1шт.

29

87458601

SWITCH

Hydraulic Attachment On-Off

1шт.

30

87440121

SWITCH

Hydraulic Attachment

1шт.

31

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

32

87427352

SWITCH

Trigger, On- Off

1шт.

33

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

34

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

35

87456565

ADAPTER

Mount

1шт.

36

256344A1

CONNECTOR, ELEC

CONNECTOR

1шт.

37

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

38

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.
