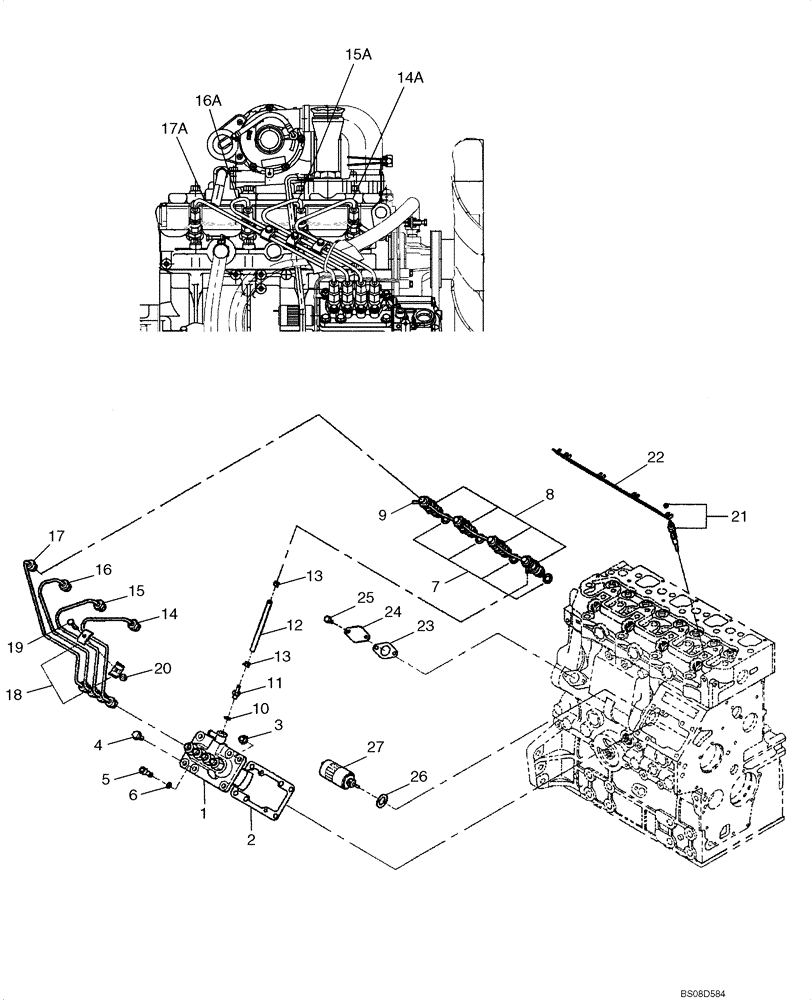

Запчасти Case IH 410 (02-19) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

SBA131017800

FUEL INJECTION PUMP

Components Not Serviced Separately

1шт.

1

SBA131017801R

REMAN-INJECTION PUMP

410 BSN N7M480924 (2/05-) Reman for New P/N SBA131017800

1шт.

1

SBA131017801C

CORE-INJECTION PUMP

Return Number

1шт.

1

SBA131017801

FUEL INJECTION PUMP

Components Not Serviced; Replaces SBA131017800

1шт.

1

SBA131017801R

REMAN-INJECTION PUMP

410 BSN N7M480924 (2/05-)

1шт.

1

SBA131017801C

CORE-INJECTION PUMP

Return Number

1шт.

2

SBA131426320

SHIM KIT

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

4

SBA010800820

BOLT

2шт.

5

SBA010700820

BOLT

1шт.

6

SBA026100008

WASHER

1шт.

7

SBA131426200

SEAL

4шт.

8

SBA131406360

FUEL SYSTEM INJECTOR

4шт.

8

87298764

REMAN-FUEL INJECTOR

4шт.

8

87298765

CORE-FUEL INJECTOR

Return Number

4шт.

9

SBA131606950

TUBE

1шт.

10

SBA140996350

COPPER WASHER,8.36mm ID x 12.98mm OD x 1.02mm Thk

1шт.

11

SBA198487920

HYD CONNECTOR

1шт.

12

SBA068204112

HOSE

1шт.

13

SBA067200078

HOSE CLAMP

2шт.

14

SBA131507700

RIGID TUBE

Use With 15, 16, 17

1шт.

14a

SBA131501030

RIGID TUBE

Use With 15A, 16A, 17A; It Is Necessary To Replace All Of The New Pipes At Once Because Of The Shape Of The Old Compared To The New

1шт.

15

SBA131507710

RIGID TUBE

Use With 14, 16, 17

1шт.

15a

SBA131501040

RIGID TUBE

Use With 14A, 16A, 17A; It Is Necessary To Replace All Of The New Pipes At Once Because Of The Shape Of The Old Compared To The New

1шт.

16

SBA131507720

RIGID TUBE

Use With 14, 15, 17

1шт.

16a

SBA131501050

RIGID TUBE

Use With 14A, 15A, 17A; It Is Necessary To Replace All Of The New Pipes At Once Because Of The Shape Of The Old Compared To The New

1шт.

17

SBA131507730

RIGID TUBE

Use With 14, 15, 16

1шт.

17a

SBA131501060

RIGID TUBE

Use With 14A, 15A, 16A; It Is Necessary To Replace All Of The New Pipes At Once Because Of The Shape Of The Old Compared To The New

1шт.

18

SBA199106020

CLAMP

6шт.

18

SBA199106021

CLAMP

Replaces SBA199106020

6шт.

19

SBA010110625

SCREW

3шт.

20

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

21

SBA185366190

GLOW PLUG

4шт.

22

SBA185376150

BRACKET

1шт.

23

SBA130996130

GASKET

1шт.

24

SBA165206640

COVER

1шт.

25

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

26

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.

27

SBA185206083

SOLENOID

1шт.
