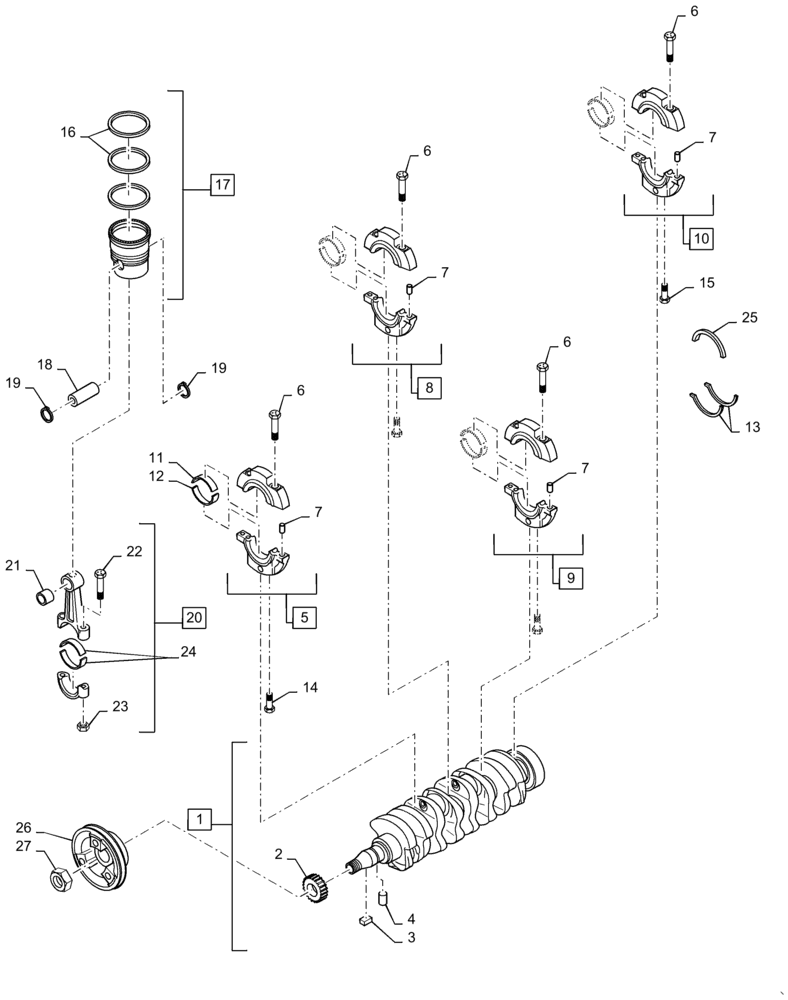

Запчасти Case IH 410 (02-12) - CRANKSHAFT, PISTONS & CRANKSHAFT PULLEY (02) - ENGINE

1

SBA115256751

CRANKSHAFT

1шт.

1

SBA115256751R

Includes Rod and Main Bearings

REMAN-CRANKSHAFT

1шт.

1

SBA115256751C

Return Number

CORE-CRANKSHAFT

1шт.

2

SBA115276200

GEAR

Crankshaft

1шт.

3

SBA034100508

KEY

1шт.

4

SBA030509020

PIN

Dowel

1шт.

5

SBA110156360

HOLDER

Bearing, Incl 6, 7

1шт.

6

SBA010109406

BOLT

8шт.

7

SBA030500612

DOWEL

8шт.

8

SBA110156370

BEARING CAP

Bearing, Incl 6, 7

1шт.

9

SBA110156380

BEARING CAP

Bearing, Incl 6, 7

1шт.

10

SBA110156390

BEARING CAP

Bearing

1шт.

11

SBA198517232

BEARING LINER,Std., Upper

Upper, Std.

4шт.

11

SBA198517236

BEARING LINER,.010" U/S, Upper

4шт.

11

SBA198517239

BEARING LINER,.020" U/S, Upper

4шт.

12

SBA198517242

BEARING LINER,Std., Lower

Lower, Std.

4шт.

12

SBA198517246

BEARING LINER,.010" U/S, Lower

4шт.

12

SBA198517249

BEARING LINER,.020" U/S, Lower

4шт.

13

SBA199266200

THRUST WASHER

2шт.

14

SBA011511070

BOLT,M10 x 70

3шт.

15

SBA010700860

BOLT

2шт.

16

SBA115107970

SET OF RINGS

4шт.

17

SBA115017491

PISTON & RINGS KIT

4шт.

18

SBA115326220

PISTON PIN,33mm OD

4шт.

19

SBA036500028

SNAP RING

8шт.

20

SBA115026330

CONNECTING ROD

4шт.

20

SBA115026330R

REMAN-CONNECTING ROD

4шт.

20

SBA115026330C

CORE-ROD CONNECTING

Return Number

4шт.

21

SBA198517260

BUSHING

4шт.

22

SBA115176140

BOLT

Connecting Rod

8шт.

23

SBA020109120

NUT

8шт.

24

SBA198517252

BEARING LINER,Std.

8шт.

24

SBA198517256

BEARING LINER,.25mm

8шт.

25

SBA199266210

THRUST WASHER

1шт.

26

SBA115396860

PULLEY

1шт.

27

SBA020109086

NUT

1шт.
