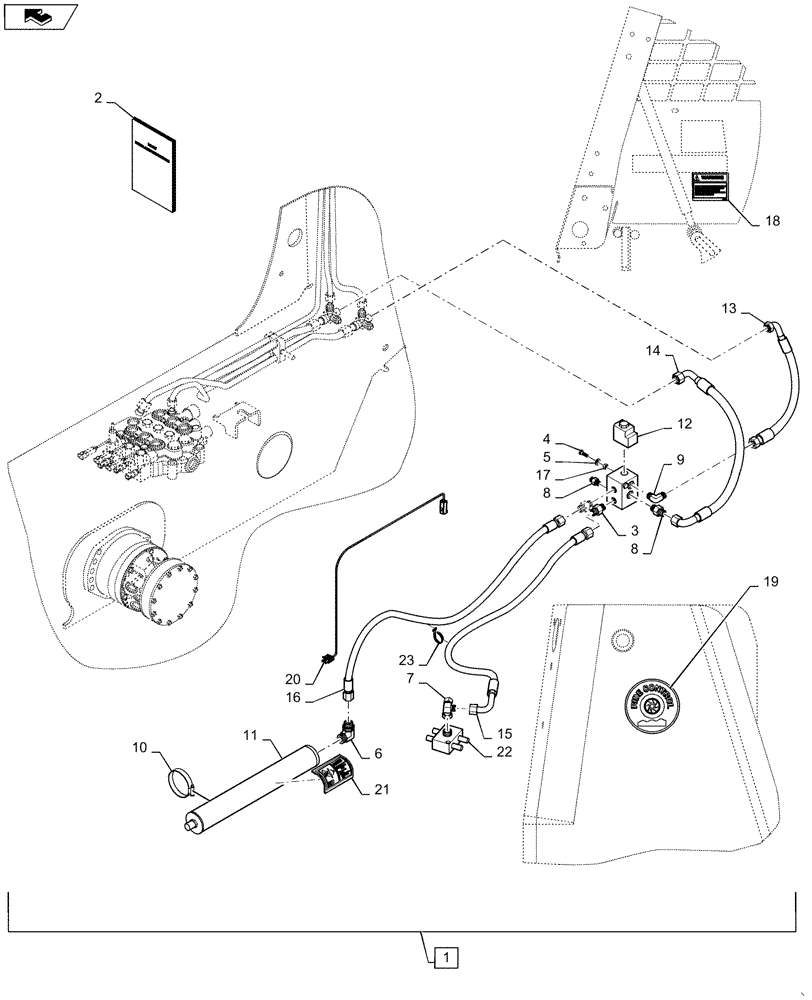

1
87460588
KIT
Installation, Ride Control, Incl 2 - 23
1шт.
2
6-79250
INSTRUCTION
Installation
1шт.
3
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Boss - 06
1шт.
4
120062
BOLT,Hex, M8 x 70mm, Cl 8.8
2шт.
5
140016
WASHER,M8 x 16mm OD x 1.6mm Thk
2шт.
6
216797
45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
Boss - 08
1шт.
7
574342
CAP,9/16" - 18 JIC
Flare Female - 06 Tube
1шт.
8
86509028
HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB
Boss 8 - 6
2шт.
9
86512938
90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB
Boss 8 - 6
1шт.
10
86624194
HOSE CLAMP,1.81” - 2.75”, Worm Gear
Gear
2шт.
11
87403797
ACCUMULATOR,275 Bar, 0.75L
Hydraulic
1шт.
12
87428444
VALVE
Solenoid Ride Control
1шт.
13
87441312
HOSE ASSY.
1шт.
14
87441313
HOSE ASSY.
Valve to Cylinder Base
1шт.
15
87456974
HOSE ASSY.
Valve to Tank
1шт.
16
87460041
HOSE
Valve to Accumulator
1шт.
17
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
2шт.
18
255927A1
WARNING DECAL
Ride Cont Warning
1шт.
19
304083A1
DECAL
Ride Control Option
2шт.
20
310838A1
HARNESS
Ride Control All XT
1шт.
21
384260A1
WARNING DECAL,168mm x 88mm H
Accumulator in System
1шт.
22
L104616
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB
Tee, JIC Run, Branch
1шт.
23
L11541
CABLE TIE,203.2mm L, Nylon
1шт.
