(88.010.01) - DIA KIT, DELUXE HEATER

Запчасти Case IH 410 (88.010.01) - DIA KIT, DELUXE HEATER (88) - ACCESSORIES

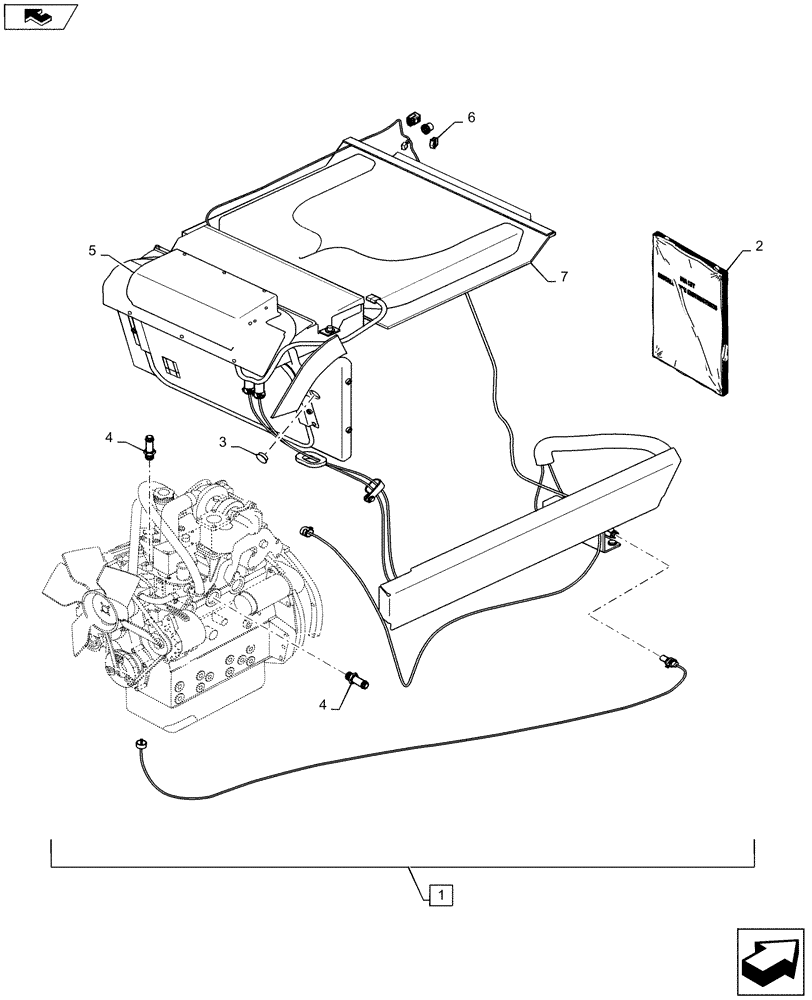

Схема запчастей Case IH 410 - (88.010.01) - DIA KIT, DELUXE HEATER (88) - ACCESSORIES
6
5
1
home
4
2
4
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87386720

DIA KIT, ADD PROD

Deluxe Heater, Incl 2 - 7

1шт.

2

87577016

INSTRUCTION

Installation

1шт.

3

86625129

PLUG,Dome, 1" Hole, Nylon

Black, Case

2шт.

4

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

2шт.

5

87682493

HEATER,Assembly, Cab

Heater Assembly

1шт.

6

87555250

PLUG

A/C Switch

1шт.

7

87383562

KIT

Installation, Deluxe Heater, Basic

1шт.
