Запчасти Case IH 410 (09-36) - HEATER SYSTEM (09) - CHASSIS

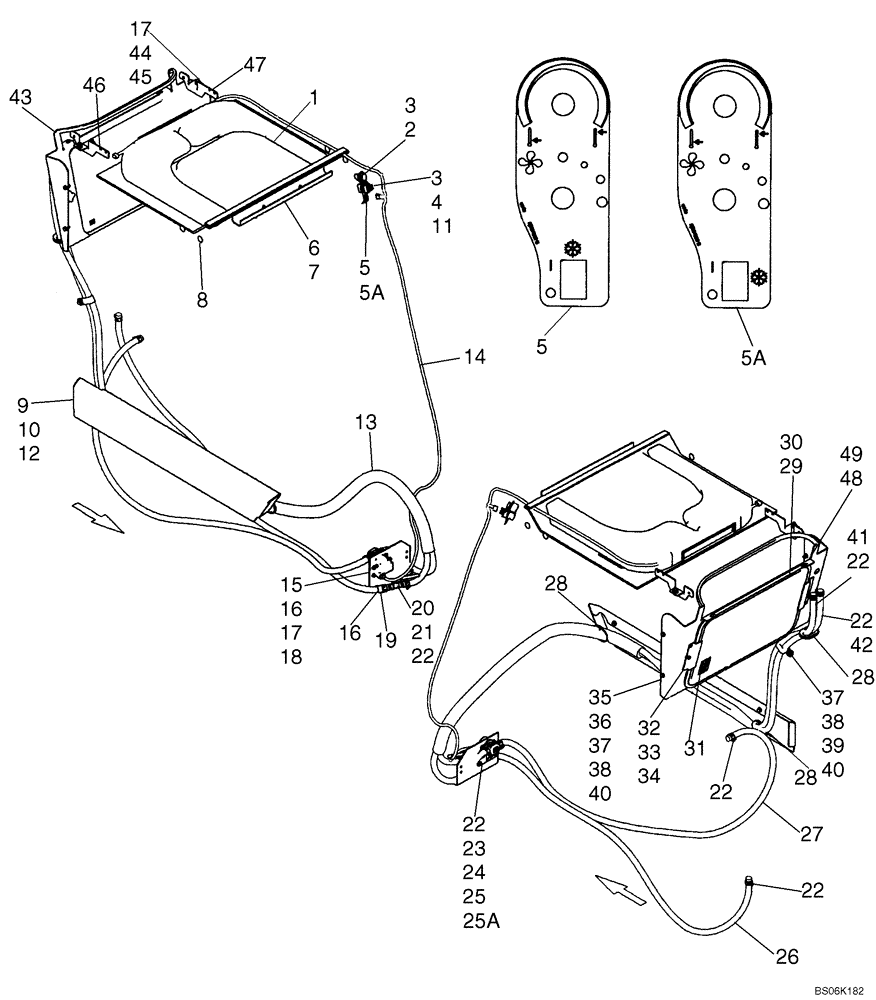

Схема запчастей Case IH 410 - (09-36) - HEATER SYSTEM (09) - CHASSIS
3
27
42
30
5
9
24
22
1
21
44
28
48
3
26
47
32
38
15
31
20
43
35
40
22
17
22
34
18
14
16
6
37
5a
49
22
25a
40
5
7
45
17
2
12
22
37
28
13
28
8
41
36
25
29
16
4
11
33
39
10
19
23
46
5a
38
22

Артикул

Название

Примечание

Количество

1

87029160

FOAM INSULATION

Headliner; See Figure 09-34

1шт.

2

86729675

SWITCH,5000 Ohm

1шт.

3

86729670

KNOB

2шт.

4

86729669

SWITCH

Blower

1шт.

5

87034668

DECAL

Heater/AC Decal; Models With Wire Harness 87520826, Ref 14

1шт.

5a

87558328

DECAL

Heater/AC Decal; If Used; Models With Wire Harness 87555248, Ref 14

1шт.

6

87438318

SUPPORT

Headliner Front

1шт.

7

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

2шт.

8

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm Lexan

4шт.

9

87458766

COVER

Right Hand

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

11

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

12

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

3шт.

13

87441006

TUBE,4.6mm ID x 1350mm L

1шт.

14

87454550

HARNESS

HVAC

1шт.

14

87520826

WIRE HARNESS

HVAC; Replaces 87454550; See Ref 5

1шт.

14

87555248

HARNESS

HVAC; See Ref 5

1шт.

15

87454411

BRACKET

Water Valve And Dryer; Two Slotted Holes Across Narrow Side; If Used

1шт.

15

87462631

BRACKET

Bracket; Water Valve And Dryer; Three Slotted Holes Across Narrow Side; If Used

1шт.

15

87704187

BRACKET

Bracket; Water Valve And Dryer; Three Slotted Holes Across Narrow Side

1шт.

16

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

17

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

19

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

25.4 mm 3/8 in Bolt; If Used

1шт.

20

87441937

VALVE

Heater Hose

1шт.

21

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

2шт.

22

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

No Longer Used, Order 87443511

8шт.

22

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

8шт.

23

87520822

CONTROL VALVE

Replaces 87023391; If Used, Incl Instructions And Adapter Harness To Go From Square Configuration To T Configuration- 3 Pins Across The Top, Then One Below

1шт.

23

87520839

VALVE

Water; If Used; Wiring Has 4 Pins In A Square Configuration

1шт.

24

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

Used With Water Valve 87023391

4шт.

24

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Used with Water Valve 87520839

4шт.

25

86619800

FLANGE NUT,M6 x 1, Cl 8

Used With Water Valve 87023391

4шт.

25

86511444

FLANGE NUT,Hex, M6 x 1

Used with Water Valve 87520839

4шт.

25a

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Used with Water Valve 87520839

4шт.

26

87452017

HEATER HOSE,15.88 mm ID x 3000.00 mm, SAE 20R3

2050 mm Long; Heater Return

1шт.

27

87452014

HEATER HOSE,15.88mm ID x 2700mm L, SAE 20R3

1980 mm Long; Heater Supply

1шт.

28

87439844

GUARD

ROPS Front

3шт.

29

87458762

CAB GLASS

Window

1шт.

30

374731A2

SEAL,2060mm L

1шт.

31

329051A1

DECAL

Emergency Exit

1шт.

32

374730A2

BRACKET

2шт.

33

369728A1

KNOB

2шт.

34

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

35

87458763

BRACKET, SUPPORTING

Left Hand; If Used

1шт.

35

87383775

BRACKET, SUPPORTING

Left Hand; With 25 mm Round Hole; If Used

1шт.

36

87458764

BRACKET, SUPPORTING

Right Hand; If Used

1шт.

36

87383517

BRACKET, SUPPORTING

Right Hand; Used With Ref 35, 87383775; If Used

1шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

5шт.

38

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

5шт.

39

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

22.2 mm

1шт.

40

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

41

87452016

HEATER HOSE,15.88mm ID x 2800mm L, SAE 20R3

Heater Return

1шт.

42

87452015

HEATER HOSE,15.88 mm ID x 2900.00 mm, SAE 20R3

3285 mm Long; Heater Supply

1шт.

43

87656756

SEAL

Bulb Seal, 800mm (31 1/2 in.) Length; Replaces 87460112

1шт.

43a

87301341

ADHESIVE

Seal, Butyl Rubber Rope; Use 87301341 To Seal Rear Window, And Rear Window Frame To ROPS And HVAV Box. 305 mm Required

1шт.

44

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

45

87436246

THREADED INSERT

2шт.

46

87460111

BRACKET, SUPPORTING

Right Hand; Replaces 87454406

1шт.

47

87460110

BRACKET, SUPPORTING

Left Hand; Replaces 87454405

1шт.

48

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

49

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.
